Aviation
Environmental Qualification:
Per RTCA/DO-227 and TSO-C142b
Aircraft Use:
Method RTCA/DO-160G:2010
• Section 20, Category R - all
operating modes
• Section 21, Category M - all
operating modes
Battery Pack:
TSO-C142-b FAA/EASA Approved
PN: 8000-000697 - ZOLL AED 3

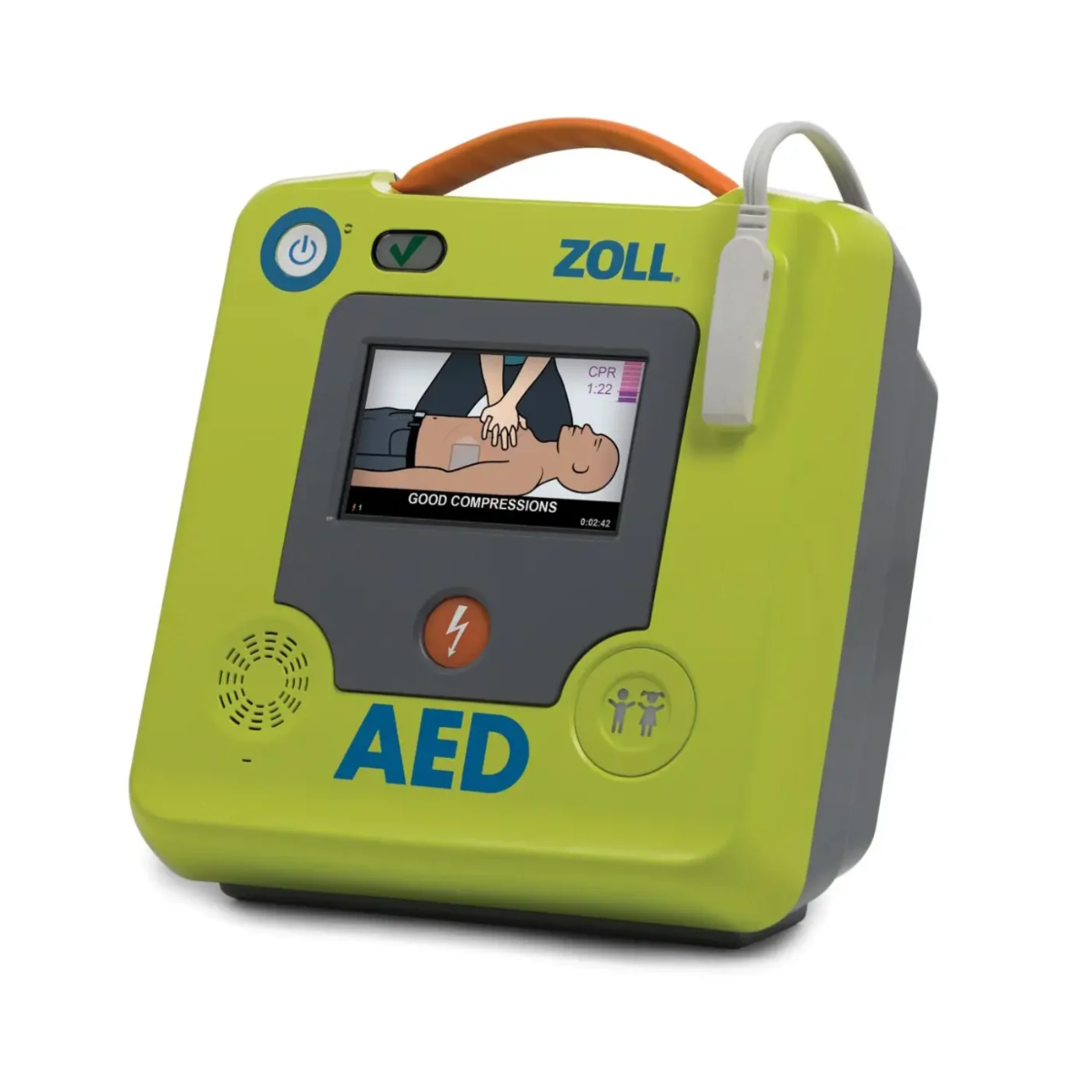

AVIATION BATTERY PACK
Device
Size: (H x W x D) 12.7 cm x 23.6 cm x 24.7 cm; 5.0 in x 9.3 in x 9.7 in
Weight: 2.5 kg; 5.5 lbs
Power: Lithium manganese dioxide battery pack
WiFi Enabled Devices: Wireless 802.11 a/b/g/n; Security Protocols, WPA1, WPA 2, WPA Personal, WPA Enterprise; Internal Clock
Synchronization: Coordinated Universal
Time (UTC) synchronization occurs
when communicating with the ZOLL Online server.
Port: USB 2.0
Audio Recording: User-configurable on/ off (default=off)
Device Classification: Internally powered per EN60601-1
Design Standards: Meets applicable requirements of EN 60601-1, EN 60601-1-11, IEC 60601-2-4
Environmental
Operating Temperature: 0° to 50°C; 32° to 122°F
Storage Temperature: -30° to 70°C; -22° to 158°F
Humidity: 10% to 95% relative humidity, non condensing
Vibration: IEC 60068-2-64, Random, Spectrum A.4, Table A.8, Cat. 3b; RTCA/DO-160G, Fixed Wing Aircraft,
Section 8.6, Test Cat. H, Aircraft Zone 1 and 2 ; EN1789, Sweep per EN 60068-2-6 Test Fc
Shock: IEC 60068-2-27; 100G
Altitude: -381 m to 4573 m; -1250 to 15000 ft
Particle and Water Ingress: IP55
Drop Test: 1 meter; 3.28 ft
|
Defibrillator
Protocol: Semiautomatic
Waveform: ZOLL Rectilinear Biphasic™
Defibrillator Charge Hold Time: 30 seconds
Energy Selection: Factory preprogrammed selection (Adult: 120 J, 150 J, 200 J; Child: 50 J, 70 J, 85 J). User configurable
Patient Safety: All patient connections are electrically isolated.
Charge Time: Less than 10 seconds with new battery
Pre-shock Pause: Less than 5 seconds (semi-automatic) with RapidShock Analysis and less than 8 seconds (automatic) with new battery
Electrodes: ZOLL CPR Uni-padz
Self-test: User-configurable automatic self-test every day or every 7 days.
Default: Every 7 days. Monthly fullenergy test (200 J).
Automatic Self-test Checks: Battery capacity, status and expiration; electrode connection and expiration; ECG and charge/discharge circuits; microprocessor hardware and software; CPR circuitry and pads sensor; audio circuitry
CPR Metronome Rate: Constant 105 (+/- 2) CPM
Depth Measurement: 1.9 cm to 10.2 cm; 0.75 in to 4 in
Defibrillation Advisory: Evaluates electrode connection and patient ECG to determine if defibrillation is required
Shockable Rhythms: Ventricular fibrillation with average amplitude >100 microvolts and wide complex ventricular tachycardia with rates greater than 150 BPM for adults, 200 BPM for paediatrics. For ECG analysis algorithm sensitivity and specificity, refer to the ZOLL AED 3 Administrator’s Guide.
Patient Impedance Measurement Range: 10 to 300 ohms
Defibrillator: Protected ECG circuitry
Display Format: High-resolution LCD with capacitive touch panel
Display Screen Size: 5.39 cm x 9.5 cm; 2.12 in x 3.74 in
Display Sweep Speed: 25 mm/sec
Display Viewing Speed: 3.84 seconds
Data Recording and Storage: User-configurable for 1 or 2 clinical events for total of 120 minutes. Includes ECG, impedance measurements, device prompts, and CPR data.
Data Recovery: Controlled by touchscreen, uploaded to USB memory stick, or RescueNet®
CaseReview over a WiFi network
|
CPR Uni-padz®
Shelf Life: 5 years
Conductive Gel: Polymer Hydrogel
Conductive Element: Tin
Packaging: Multilayer foil laminate pouch
Impedance Class: Low
Cable Length: 142 (+/-3.8) cm; 56 (+/- 1.5) in
Design Standards: Meets requirements of IEC 60601-2-4
|
Battery
Battery Certification: TSO C142-b
Battery Capacity: Typical new battery running at an ambient temperature of +20° C to +25° C (68° F to 77° F) can provide 140 defibrillator discharges at maximum energy (200 joules), or 6 hours of continuous monitoring (with 2-minute CPR periods).
Note: CPR periods shorter than 2 minutes can decrease the operating time that can be obtained from a new battery.
Type: Disposable, sealed lithium manganese dioxide
Battery Standby Life (once installed): 5 years with weekly self-test.* Battery end of life indicated by blank status window (typical remaining shocks: 9).
Battery Shelf Life: Store for up to 2 years at 23°C (77°F) prior to installing in ZOLL AED 3 Aviation to maintain battery life detailed above
Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 10% to 95% (non-condensing)
Weight: 317.5 grams; 0.7 lbs
Size: (H x W x D) 27.75 mm x 133 mm x 88 mm; 1.0 in x 5.16 in x 3.5 in
Nominal Voltage: 12 volts
|
