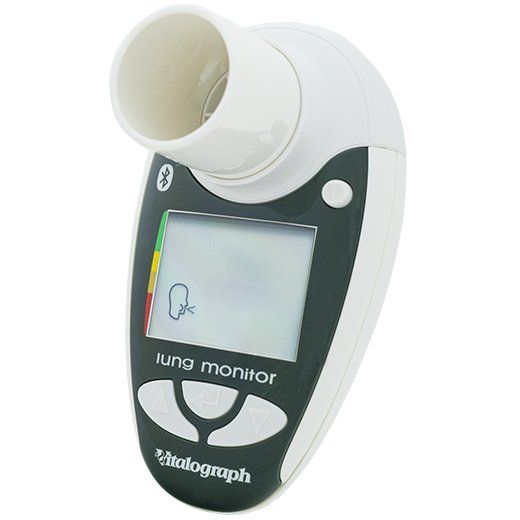

Vitalograph Respiratory Lung Monitor Bluetooth SMART
The lung monitor bt combines all of the features of the lung monitor with the ability to transmit results via Bluetooth using a paired device such as a mobile phone, PDA, PC or home hub. Session data and device ID may be transmitted to Vitalograph Reports or an API developers' kit is available for providers of e-Diary, home hub and telemedicine solutions.
This device can be used for respiratory monitoring in clinical trials, at home, at work, in primary or in secondary care.
Automatically sends data after each blow
Can also send memory dumps (up to 200 test sessions)
Indicates blow quality and number of blows in each session
FEV1, FEV6, FEF25-75 and FEV1/FEV6
Personal best FEV1 as set in device
Management zones as set in device
Time and date of each session
Device ID automatically transmitted with the data
This is usually a stock item - Please allow 1 to 3 working days delivery
In most cases, items in stock that are ordered before 12 noon are delivered on a next working day service.
If you need this item urgently please use the live chat or call us to enquire about our premium rate delivery service including same-day, timed and weekend deliveries. For more information about delivery, please visit our delivery information page here
Brand - Vitalograph
Detailed Technical Information -
Product
Vitalograph lung monitor bluetooth
Model Number
4000
Part Number
40500, 40400, 40750, 40950
Description
Vitalograph lung monitor, Vitalograph lung monitor usb, Vitalograph lung monitor bluetooth, Vitalograph lung monitor serial
Parameters Displayed
FEV1, FEV6 , FEV1/FEV6 ratio and FEF
Memory
FEV1, FEV6 , FEV1/FEV6 ratio and FEF
Quality of Blow Indicator
Yes
Accuracy
Better than +/- 3%
Range
0 - 9.99 L BTPS
Sensor
Stator rotor
Flow Impedance
Better than 0.15 kPa/L/s at 14 L/s
Power Supply
AAA batteries
Display
Custom liquid crystal display
Size
113 x 63 x 48mm
Weight
55g net
Performance standards
ISO 26782:2009 ISO 23747:2007 ATS/ERS Guidelines 2005
Operating Temperature Range
17 - 37°C
Management Zones
Factory set 3 zones Green/Yellow threshold 95% Yellow/Red threshold 90% Zones may be changed by the user And number of zones increased to 4
Safety Standards
IEC 60601-1:2005
Medical Safety Standard
Medical Devices Directive 93/42/EEC
Designed and manufactured to following QA/GMP standards
ISO 13485:2003 FDA 21CFR820 CMDR
Vitalograph Respiratory Lung Monitor Bluetooth SMART SKU: VT-40373
Price:
£300.00 £250.00
Description
Specification
Product
Vitalograph lung monitor bluetooth
Model Number
4000
Part Number
40500, 40400, 40750, 40950
Description
Vitalograph lung monitor, Vitalograph lung monitor usb, Vitalograph lung monitor bluetooth, Vitalograph lung monitor serial
Parameters Displayed
FEV1, FEV6 , FEV1/FEV6 ratio and FEF
Memory
FEV1, FEV6 , FEV1/FEV6 ratio and FEF
Quality of Blow Indicator
Yes
Accuracy
Better than +/- 3%
Range
0 - 9.99 L BTPS
Sensor
Stator rotor
Flow Impedance
Better than 0.15 kPa/L/s at 14 L/s
Power Supply
AAA batteries
Display
Custom liquid crystal display
Size
113 x 63 x 48mm
Weight
55g net
Performance standards
ISO 26782:2009 ISO 23747:2007 ATS/ERS Guidelines 2005
Operating Temperature Range
17 - 37°C
Management Zones
Factory set 3 zones Green/Yellow threshold 95% Yellow/Red threshold 90% Zones may be changed by the user And number of zones increased to 4
Safety Standards
IEC 60601-1:2005
Medical Safety Standard
Medical Devices Directive 93/42/EEC
Designed and manufactured to following QA/GMP standards
ISO 13485:2003 FDA 21CFR820 CMDR
