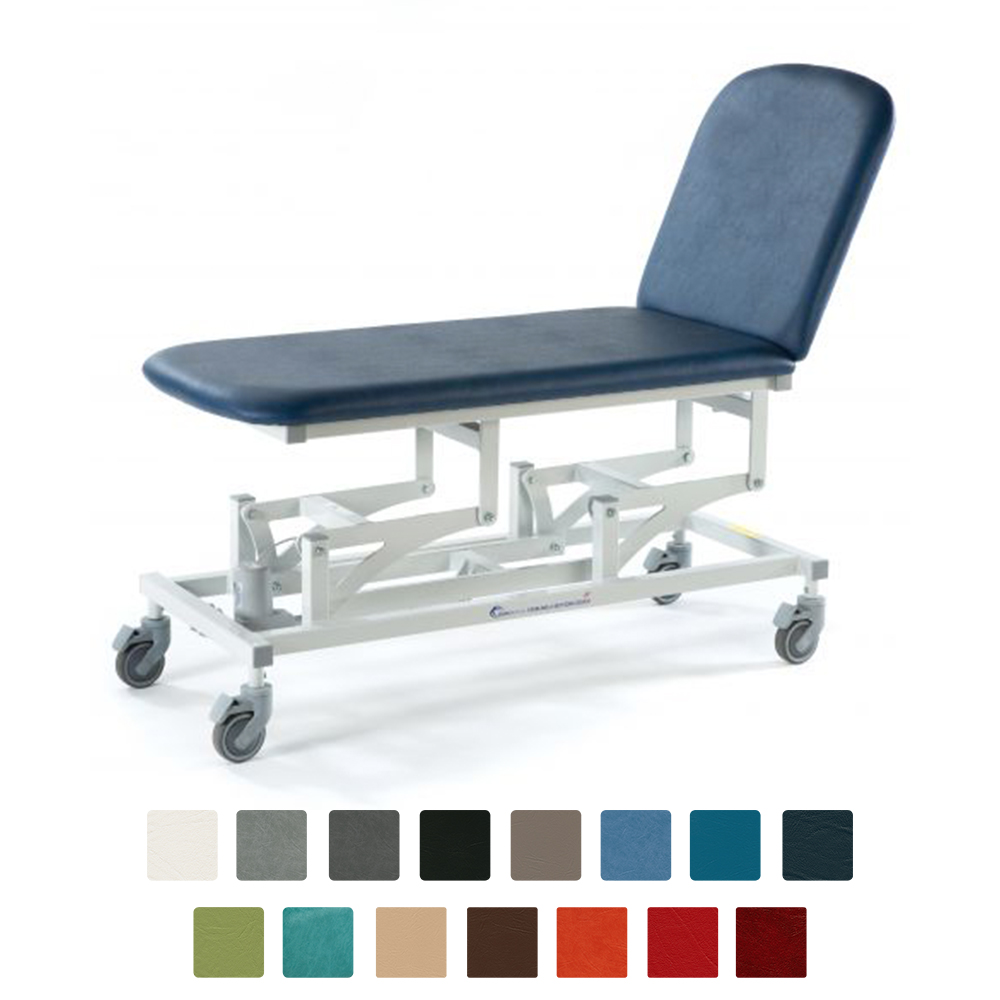

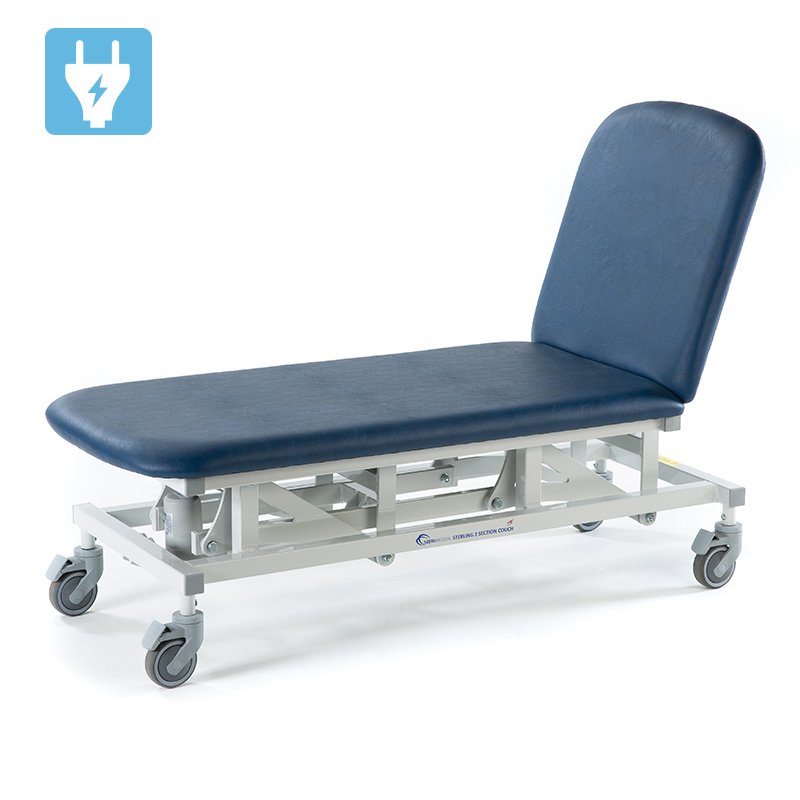

The Sterling 2 Section Couch provides excellent value for money and is suitable for a wide range of examination procedures. The fully adjustable backrest supports the patient for treatment or examinations in the seated position and the backrest can also be adjusted to -20 degrees for neck and head examinations and some manipulative procedures. Additionally, an optional breathing hole and plug can be added for prone treatments. A hand switch is fitted as standard for height control with a foot switch available as an option.

Standard Features

• Safe working load and lifting capacity of 200Kg
• Adjustable backrest angle from -20° to +85°
• Electric height elevation
• Excellent height range from 46cm to 99cm
• 100mm diameter individually locking castors
• Purpose made precision bearings on all pivot points
• Clearance beneath frame for mobile hoist
• Hand switch fitted as standard
• Standard width upholstery 63cm
• Choice of upholstery colours - Please select from options

Upholstery

A really hard wearing ‘leather look’ vinyl that will retain its performance for many years if cleaned and treated in the right manner. This fabric is fire retardant to crib 5, anti-bacterial and waterproof. Abrasion resistance to 100,000 cycles.

Available in 16 colours:

• White
• Light Grey
• Dark Grey
• Black
• Pepper
• Sky Blue
• Canard
• Dark Blue
• Olive
• Lotus Green
• Cream
• Brown
• Poterie
• Red
• Burgundy

Optional Accessories Available

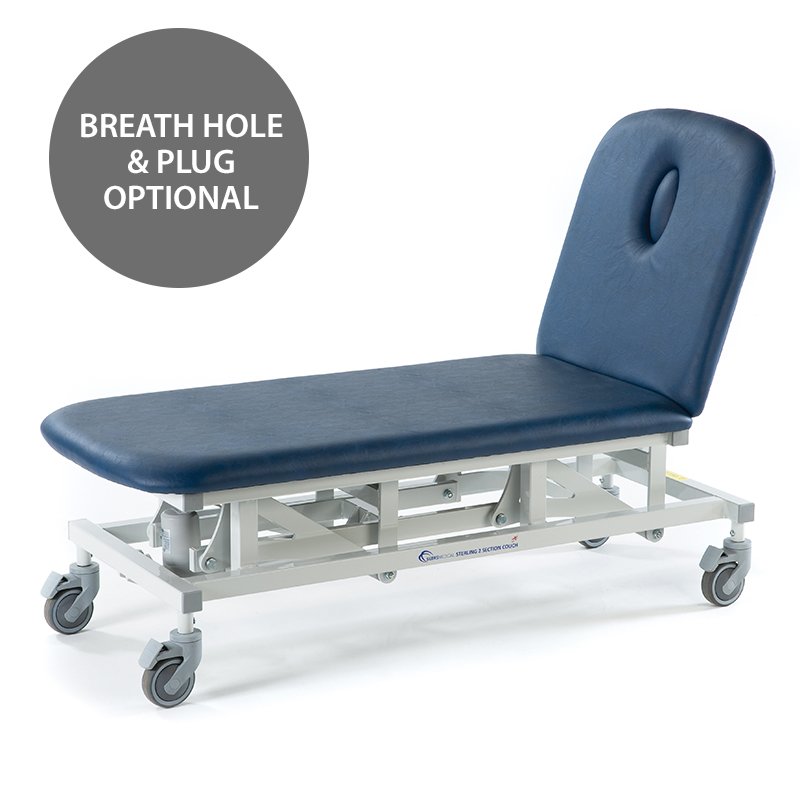

• Breathing hole & plug (Must be ordered with couch) (SS-6004)
• Single foot switch option (SS-6200)
• Head/Knee Support (SS-6007)
• Paper Roll Holder (SS-6005)
• Side Support Rails (Pair) (SS-6003)
• Cushions for Side Support Rails (Pair) (SS-6003P)

Warranty

This couch has a lifetime frame warranty, 2 years on electric and hydraulic actuation, 2 years on gas struts and 12 months on all other components. (Further warranty details are available on request)

Good to know...

Mechanical Safety & Load Testing

All SEERS Medical products have been tested to the applicable clauses within IEC 60601-2-38 for mechanical safety and load test. Our couches have been thoroughly tested with a two and a half times safe working load (in excess of 600kgs) loaded evenly, for in excess of one hour, to prove load support capability without failure. All products are tested in accordance to IEC 60601-2-38 Clause 28.4 Not only do our products have high safe working loads (typically 240Kg), but our products also lift the rated safe working load from the minimum height to the maximum height smoothly.

Electrical Safety

All SEERS Medical products comply to IEC 60601-1 Safety for Medical Electrical Equipment as well as meeting the requirements of EMC to the standards of EN 60601-1-2:2000 - Directive 2007/47/EC. In addition, the actuation and control systems used on our products are marked with the UL mark, demonstrating compliance to UL60601-1 and CAN/CSA-C22.2No. 601.1-M90, meeting the requirements for USA and Canada. The actuation control system is also marked with approval to C-ETL-US No. 3154358.

CE Marking & Quality System

SEERS Medical operates a Quality Management System in accordance with ISO 9001:2008. SEERS products comply with the Essential Requirements in Annex I of EC Directive 93/42/EC, with all relevant design, production records, risk assessments, product testing and labelling information recorded in the documentation file labelled the “Technical File”. All products carry a unique serial number for traceability of build date, model number and associated build records.
