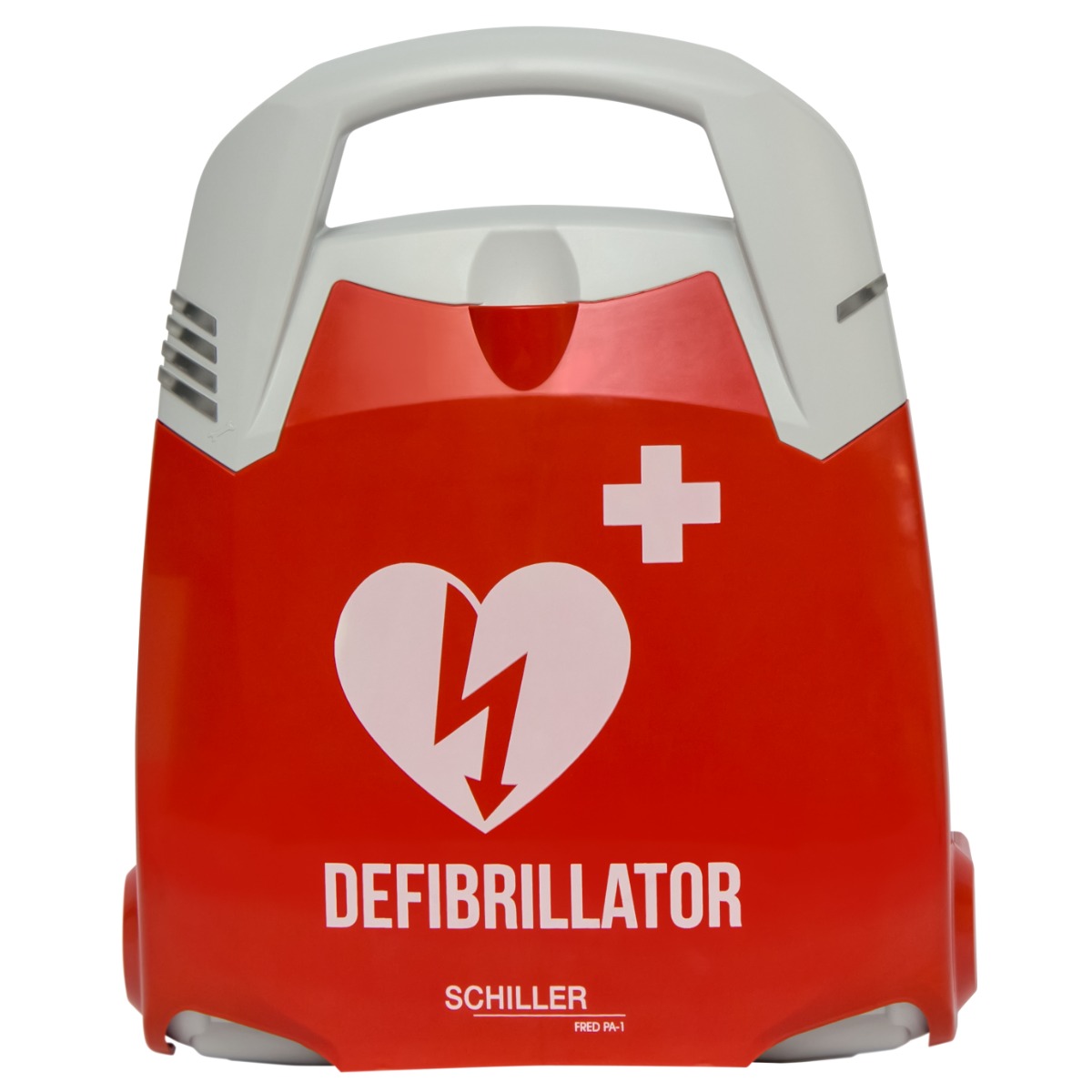

Schiller FRED PA-1 Fully-Automatic Defibrillator

---

SKU: SC-1.800450FA-1

Price:

Description

Specification

System

Versions

FRED PA-1: Standalone version

FRED PA-1 Online: Connected via cellular network technology to the LifeDataNet G2 Server for devices pool management and intervention data transmission.

Device

Dimensions: 310 x 255 x 100 mm (h x l x w)

Weight: Approximately 2.5 kg with battery and standard accessories.

Ambient conditions

Temperature:
– Operation: 0 to 40°C;
– Transport/storage: -20 to 50°C

Humidity:
– Operation: 30 to 95% non-condensing
– Transport/storage: 30 to 95% non-condensing

Pressure:
– Operating: 700 to 1060 hPa
– Transport/storage: 700 to 1060 hPa

Dust and water protection: IP55

Electrical data

Power supply

Battery type: Lithium/MnO2 15V, 2.8 Ah

Battery life: The power supply is suitable for continuous operation for 4 hours and 30 minutes with intermittent
loading or more than 140 shocks at maximum energy if the FRED PA-1 is stored/used in optimal temperature conditions between 15 to 25°C.

Standby duration:

For a standard FRED PA-1 with SD card:

– Several years in standby, (standby duration corresponding to laboratory tests at 25°C: 6 years with weekly self-tests)
For the FRED PA-1 Online with cellular network:

– Several years in standby, (standby duration corresponding to laboratory tests at 25°C, with a constant, good cellular network connection and without antenna roaming: 3 years with weekly self-tests)

Display and voice prompts

LED and pictograms with voice prompts to guide the user.

Voice prompts languages: The device can be provided with different languages. Optional configuration with 3 languages, selectable after switching ON the device.

Metronome: Configurable pace for CPR

Interfaces and data recording

Interface: SD card
Recorded data: 2 hours ECG signal recording and 500 technical events.

FRED PA-1 Online

Interface:

Frequency range:

– 836 MHz (TX) and 882 MHz (RX/IDLE) – 4G Band 5
– 1950 MHz (TX) and 2140 MHz (RX/IDLE) – 4G Band 1

LifeDataNet G2:

– Is hosted by an approved provider for hosting health and medical data.
– Complies with the highest security standards (ISO 27001).
– Server to device communication is certified with an SSL certificate and AES 128 bit encrypted



Defibrillation

Defibrillation mode

Semi-automatic or fully automatic AED version.

Waveform

Biphasic Truncated Exponential (BTE)

Energy

AED adult: 150/200/200 J – other energies settings can be configured.

AED child: 50/50/50 J – other energies settings can be configured – automatic adaptation when paediatric pads are connected.

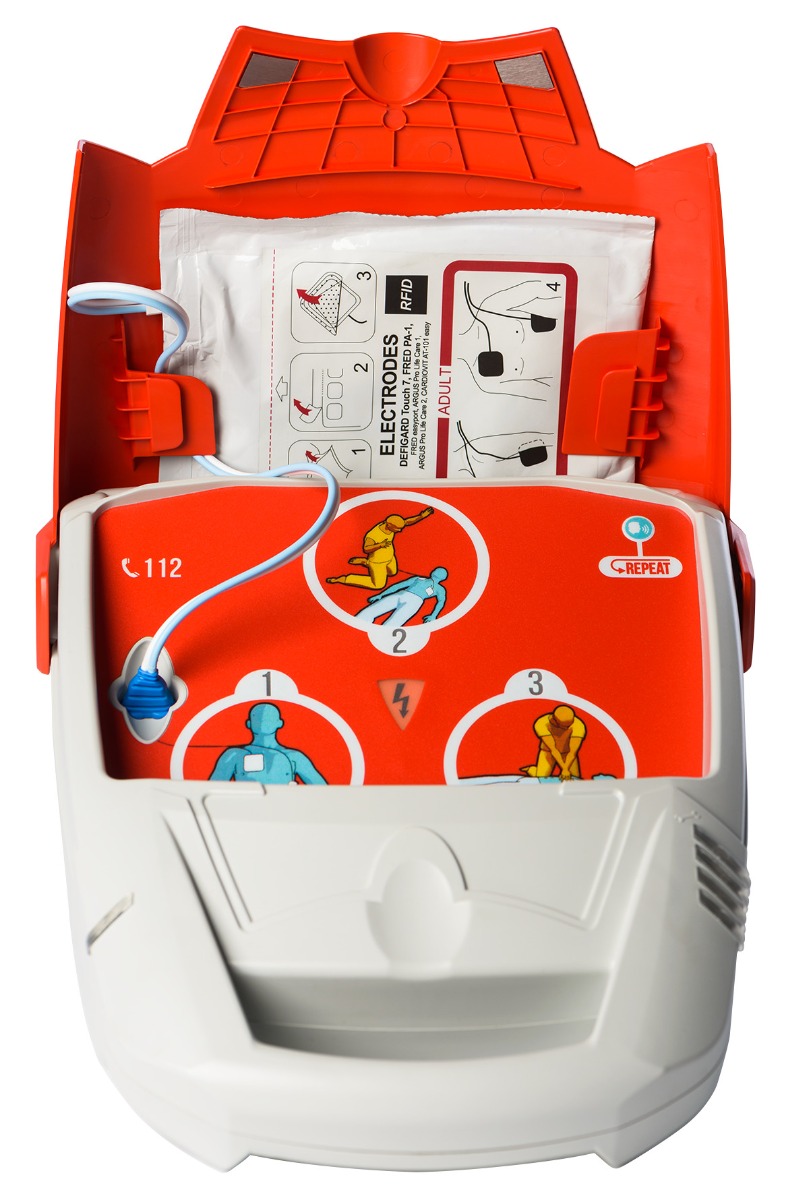

Pads

Type: For adult and child

Cable length: 2 meters

Size pads: 80 cm² (adult) and 42 cm² (child) active surface area

RFID tag: For pads shelf life monitoring

FreeCPR (option)

Optional information on the chest compression frequency using impedance variation acquired with defibrillation pads



Standards

Certification:

Classification according to Directive 93/42/EEC: II b

Standards:
– IEC60601-1: Electrical safety
– IEC60601-1-2: EMC
– IEC60601-1-11: Medical electrical equipment used in the home healthcare environment.
– IEC60601-2-4: Defibrillators
– IEC 60529: Protection indication

Notified body: GMED CE0459

Manufacturer: SCHILLER Medical

Versions

FRED PA-1 fully automatic - AED fully automatic
FRED PA-1 semi-automatic - AED semi-automatic
FRED PA-1 Online fully automatic - AED fully automatic with cellular network module.
FRED PA-1 Online semi-automatic - AED semi-automaticwith cellular network module
