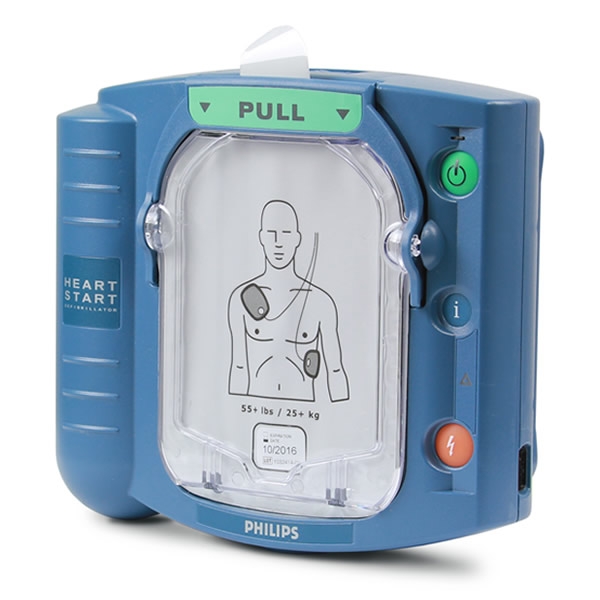

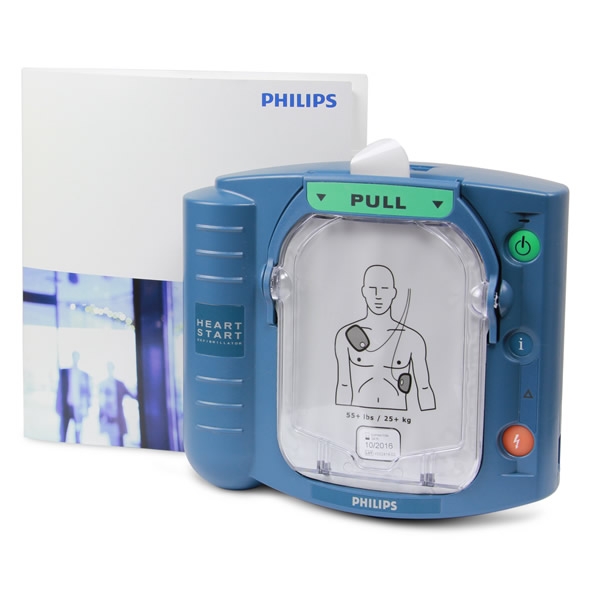

Philips HeartStart HS1 Semi Automatic Defibrillator

---

SKU: AED360-M5066A-1

Price:

Description

Specification

Waveform: Truncated Exponential Biphasic; waveform parameters adjusted as a function of each
patient’s impedance

Therapy: Adult defibrillation: peak current 32 A (150 J nominal into a 50 ohm load) Pediatric defibrillation with optional Infant/Child SMART Pads Cartridge installed: peak current 19 A (50 J nominal into 50 ohm load)

Shock-to-shock cycle time: Typically less than 20 seconds between shocks in a series

Quick Shock: Able to deliver a shock after the end of a CPR interval, typically in 8 seconds

Voice instructions: Detailed voice messages guides the responder through use of the defibrillator

CPR guidance: Instructions for infants and children under 25 kg (55 lb) or 0-8 years old, and adults and children over 25 kg (55 lb) or greater than 8 years old

Shock delivery: Via adhesive pads placed on patient’s bare skin as illustrated on pads

Controls: Green SMART Pads Cartridge handle, green On/Off button, blue i-button, orange Shock button

Indicators: Ready light; blue i-button; caution light, Shock button lights up when shock is advised

Physical

Size: 7.2 cm x 19 cm x 21 cm (2.8 in x 7.4 in x 8.3 in) H x D x W

Weight: With battery and pads cartridge: 1.5 kg (3.3 lb) Without battery or pads cartridge: 1 kg (2.4 lb)

Environmental/physical requirements

Sealing: Solid objects per EN60529 class IPX2 Drip-proof per EN60529 class IPX1

Temperature: Operating: 0° – 50° C (32° – 122° F) Standby: 10° – 43° C (50° – 109° F)

Humidity: Operating: 0% to 95% relative, non-condensing Standby: 10% to 75% relative, non-condensing

Altitude: Operating: 0 to 4,572 m (15,000 ft) Standby: up to 2,591 m (8,500 ft)

Shock/drop abuse: Withstands one-meter drop to any edge, corner or surface

Battery (M5070A)

Type: 9 Volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells

Capacity: Minimum 200 shocks or 4 hours of operating time

Install-by date: Battery is labeled with an install-by date of at least 5 years from date of manufacture

Standby life: Typically, 4 years when battery is installed and when stored and maintained according to directions provided in this document

SMART Pads

Adult SMART Pads Cartridge: M5071A defibrillation pads for patients over 8 years of age or 25 kg (55 lb) and over

Infant/Child SMART Pads Cartridge: M5072A defibrillation pads for patients
0-8 years of age and under 25 kg (55 lb), by prescription only

Active surface area: 85 cm2 (13.2 in2) each

Cable length: Adult SMART Pads: 137.1 cm (54 in) Infant/Child SMART Pads: 101.6 cm (40 in)

Use-by date: Cartridge is labeled with a use-by date of at least 2 years from date of manufacture

Vibration: Meets EN1789 random and swept sine, road ambulance specification in operating
and standby states

EMI: (radiated/ immunity) Meets EN55011 Group 1 Level B Class B and EN61000-4-3

Data recording and transmission

Infrare:d Wireless transmission of event data to a smartphone or PC, using the IrDA protocol

Data stored: First 15 minutes of ECG and the en

Patient analysis system

Patient analysis: Evaluates patient ECG to determine if a rhythm is shockable. Rhythms considered shockable are ventricular fibrillation (VF) and certain ventricular tachycardias (VT) associated with lack of circulation. For safety reasons, some VT rhythms associated with circulation will not be interpreted as shockable, and some very low-amplitude or low-frequency rhythms will not be interpreted as shockable VF.

Sensitivity/specificity: Meets AAMI DF80 guidelines and AHA recommendations for adult defibrillation (Circulation 1997;95:1677-1682)

Artifact detection: The effects of pacemaker artifact and electrical noise are minimized

Automated and user-activated self-tests

Daily automatic self-tests: Tests internal circuitry, waveform delivery
system, pads cartridge and battery capacity

Pads integrity test: Specifically tests readiness-for-use of pads (gel moisture)

Battery insertion test: Upon battery insertion, extensive automatic self-tests and user-interactive test check device readiness

Status Indicators: Blinking green “Ready” light indicates ready for use; audible “chirp” indicates
need for maintenance
