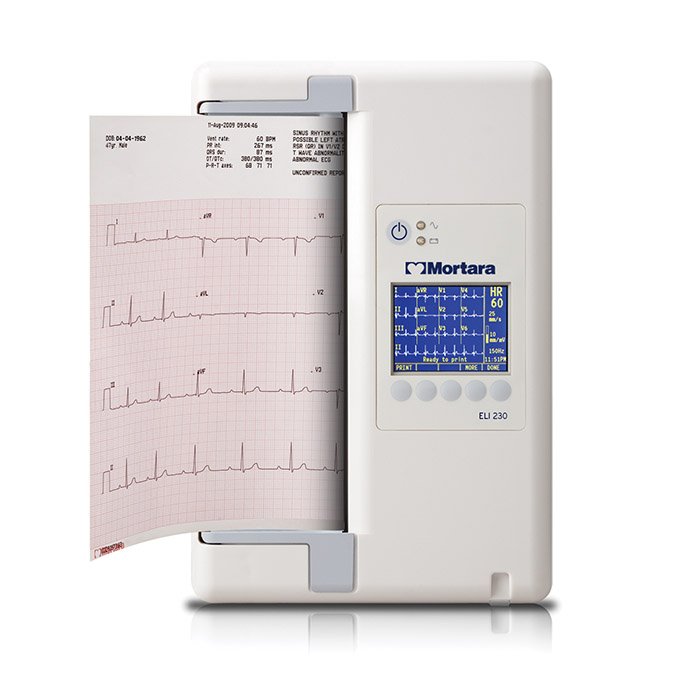

The ELI 230 from Mortara is a highly portable and compact 12-lead Electrocardiograph machine. It is a cost-effective ECG solution offering accurate and reliable adult/paediatric ECG interpretation and full-size printouts.

The color display provides real-time preview of three, eight or twelve leads of ECG data, as well as post-acquisition review of acquired ECG. And the VERITAS™ resting ECG interpretation algorithm uses gender-specific and adult and paediatric criteria to provide a silent second opinion for diagnostic interpretation.

• Ideal for community use

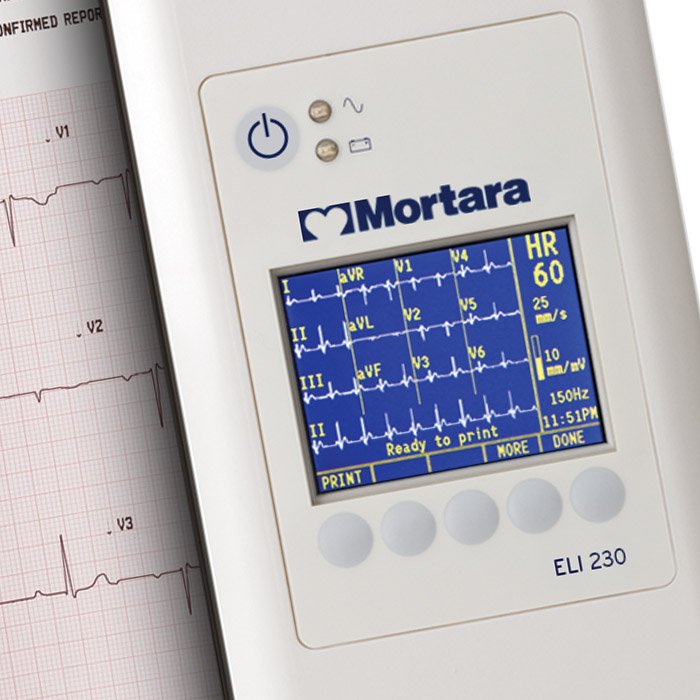

• High-resolution colour display provides real-time preview and review of 12-lead ECG
• Best 10 technology captures the best 10 seconds of recorded ECG from system memory, helping to ensure clean ECGs and eliminating the need for repeat tests
• Uses the highly regarded VERITAS™ ECG interpretation algorithm, powered by Mortara
• Built-in A4 thermal printer
• 20 ECG patient storage, expandable with USB stick
• Available with wired patient cables or wireless patient cable module
• No connectivity to electronic records
• Weighs 2.63kg including battery
• Dimensions 28.58 x 19 x 7cm
• 3 year warranty on main unit, 90 days warranty for patient cable
• Additional warranty and Comprehensive Protection available

All configurations of the ELI 230 ECG include:

• ELI 230 Portable ECG unit with interpretation
• IEC Banana clips
• Clip adaptors (10)
• Tab electrodes (100)

Configurations available

• With Wired AM12 Patient Cable
• OR with Wireless patient cable module
