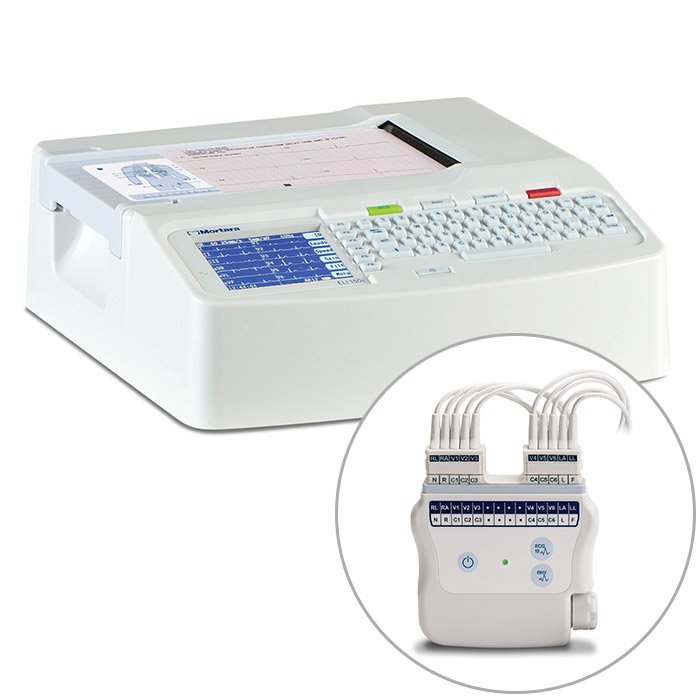

The ELI 150c from Mortara is a desktop 12-lead Electrocardiograph machine that offers comprehensive functionality and connectivity in a compact device.

The color display provides real-time preview of twelve leads of ECG data, as well as post-acquisition review of acquired ECG. And the VERITAS™ resting ECG interpretation algorithm uses gender-specific and adult and paediatric criteria to provide a silent second opinion for diagnostic interpretation.

• High-resolution colour display provides real-time preview and review of 12-lead ECG
• Best 10 technology captures the best 10 seconds of recorded ECG from system memory, helping to ensure clean ECGs and eliminating the need for repeat tests
• Uses the highly regarded Mortara VERITAS™ ECG interpretation algorithm
• Memory storage for up to 200 patients
• Full keyboard with “one-touch” buttons for ECG acquisition, rhythm printing and data transmission
• Thermal printer, Z-fold paper
• Comes with wired patient cable (wireless patient cable module also available)
• Weighs just 3.3 kg including battery
• Dimensions 29.2 x 30.5 x 10.2 cm
• 2 year warranty
• Additional Warranty and Comprehensive Protection available
• PDF and XML data output

All configurations of the ELI 150c ECG include:

• ELI 150c desktop ECG unit with interpretation
• IEC Banana clips
• Wired patient cable
• Clip adaptors (10)
• Tab electrodes (100)
• Thermal printer Z-fold paper

3 Configurations available:

• With USB to PC connectivity

This configuration allows the ELI150c to connect to a PC via a USB cable.

• With wired LAN network connectivity

This configuration allows the ELI150c to exchange data with your file server using a standard network cable. No PC required.

• With wireless LAN network connectivity

This configuration allows the ELI150c to wirelessly exchange data with EMIS your file server. No PC required.

Optional extras to consider:

• ELI Link "Viewing" Software


Connect the ELI 150 directly to your PC via USB using the ELI Link PC software. View and download colour PDF's generated on the ECG machine and within a few clicks, attach the PDF to the patient record on your patient record system.
