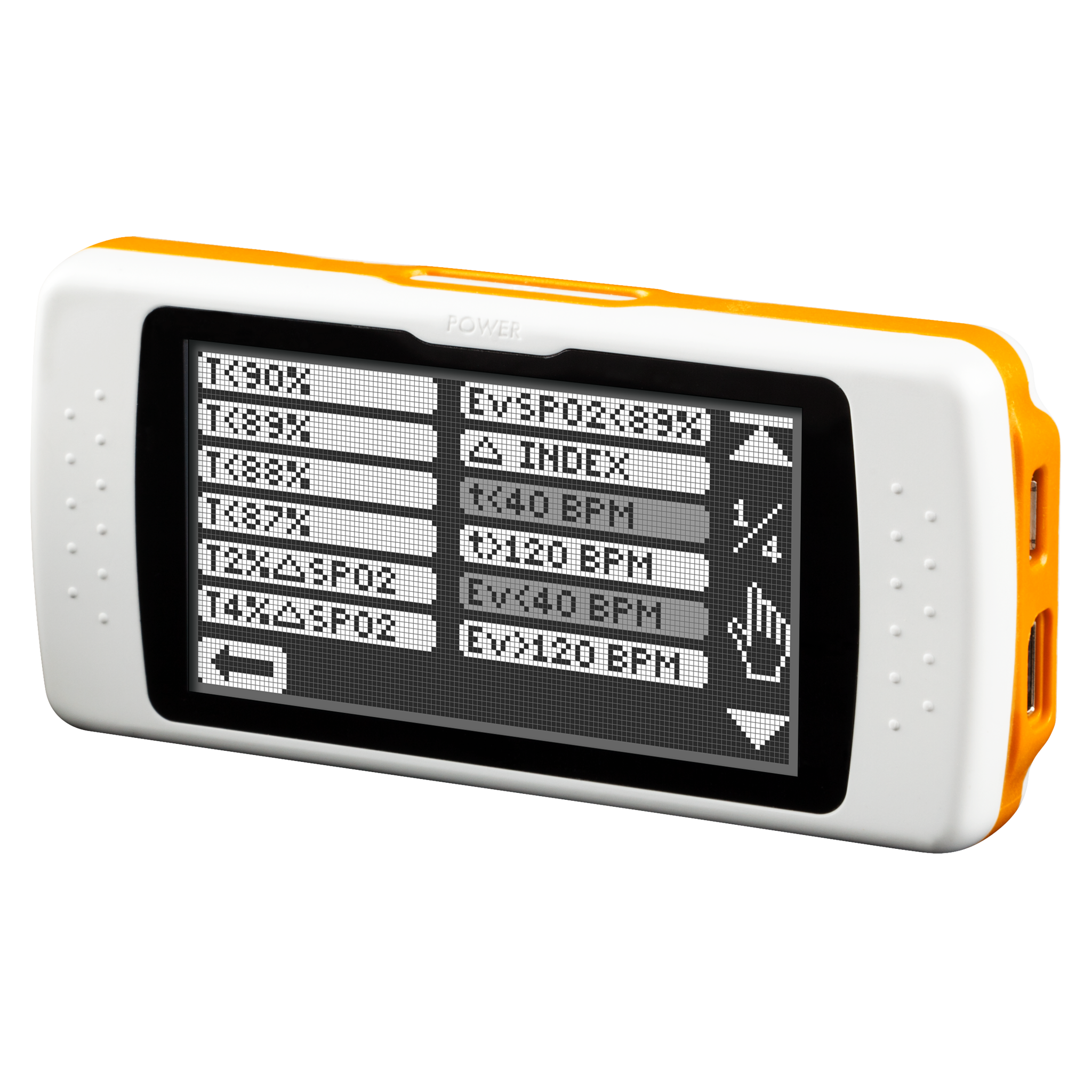

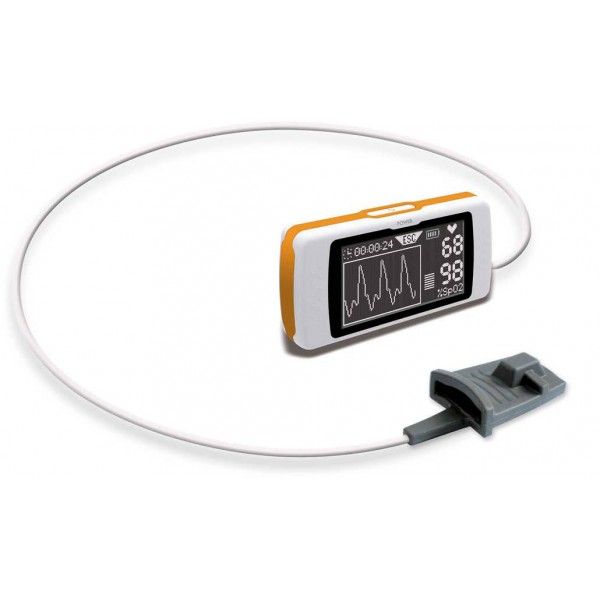

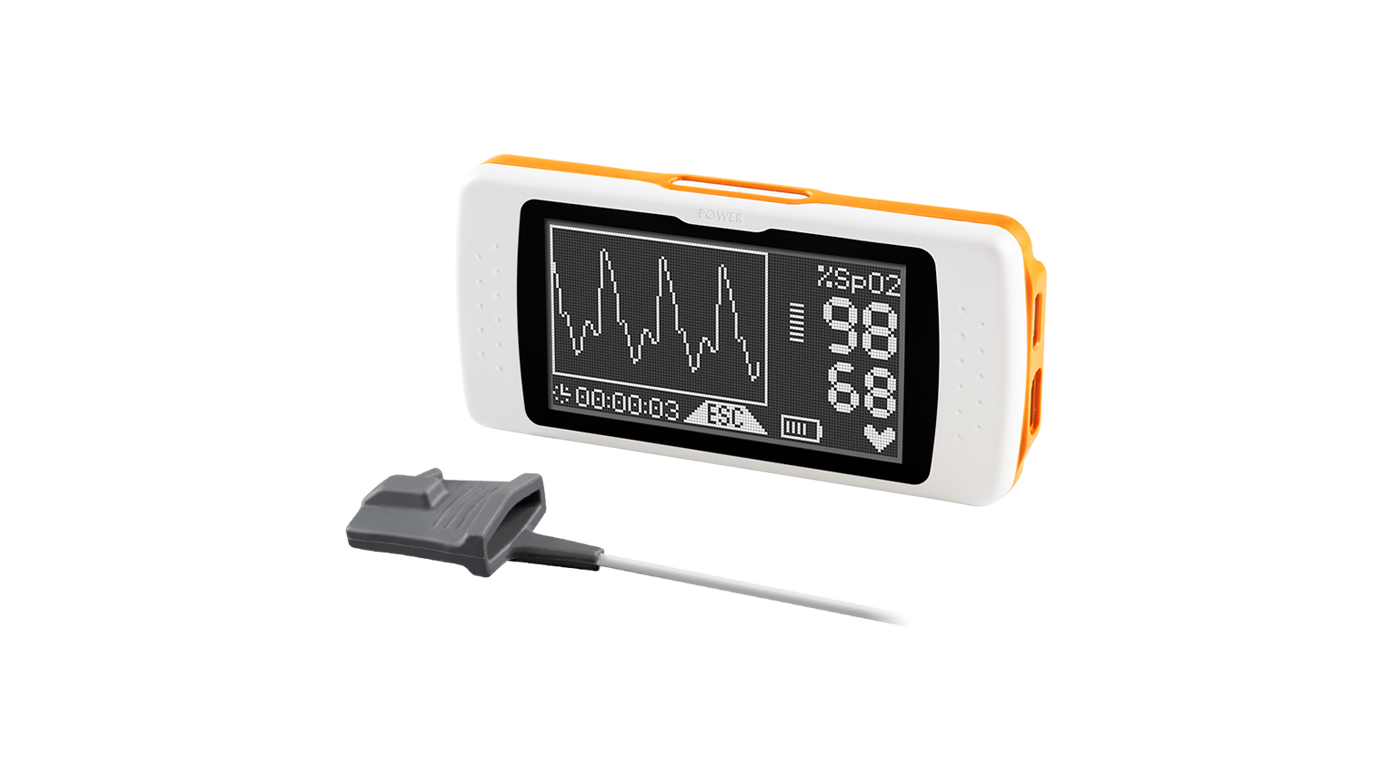

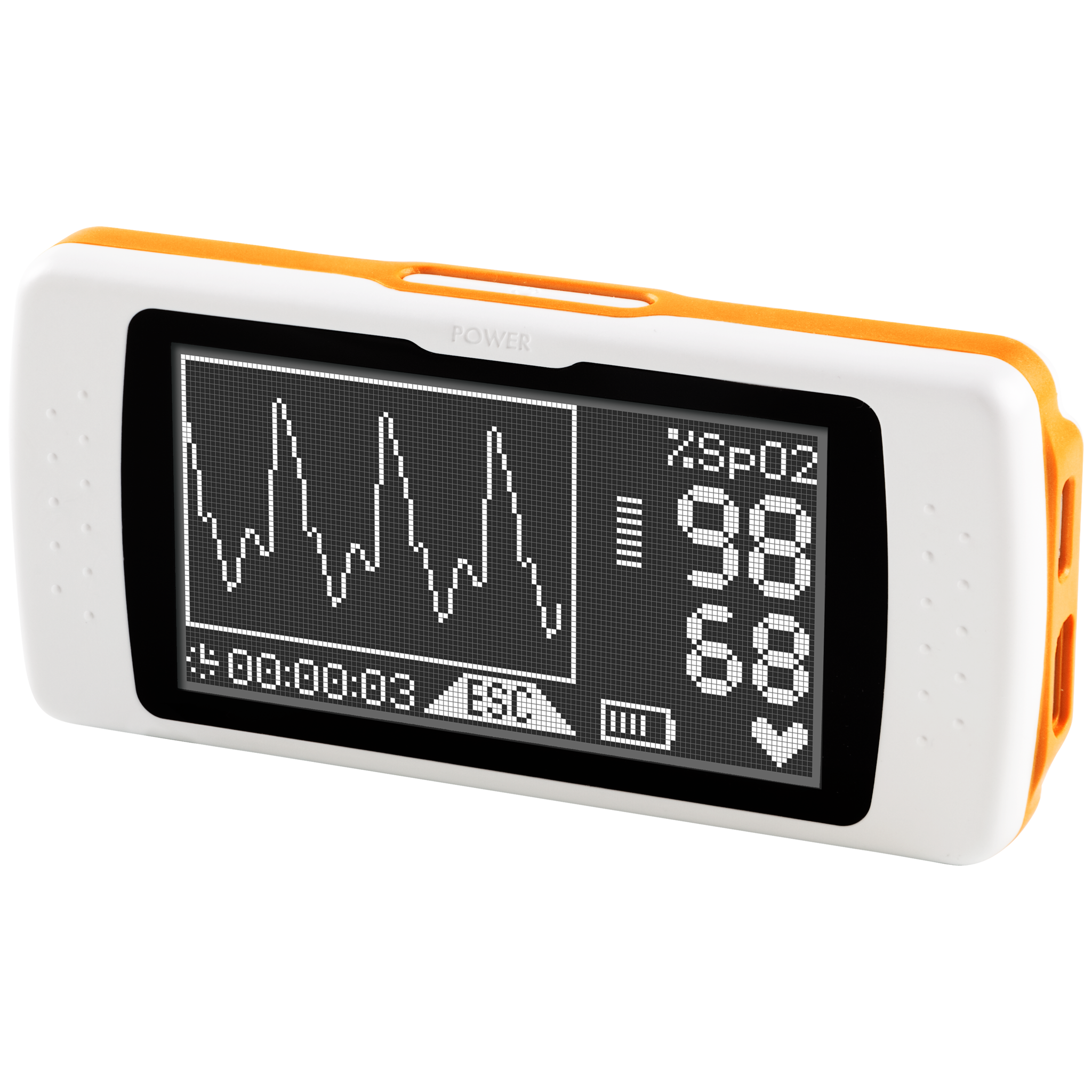

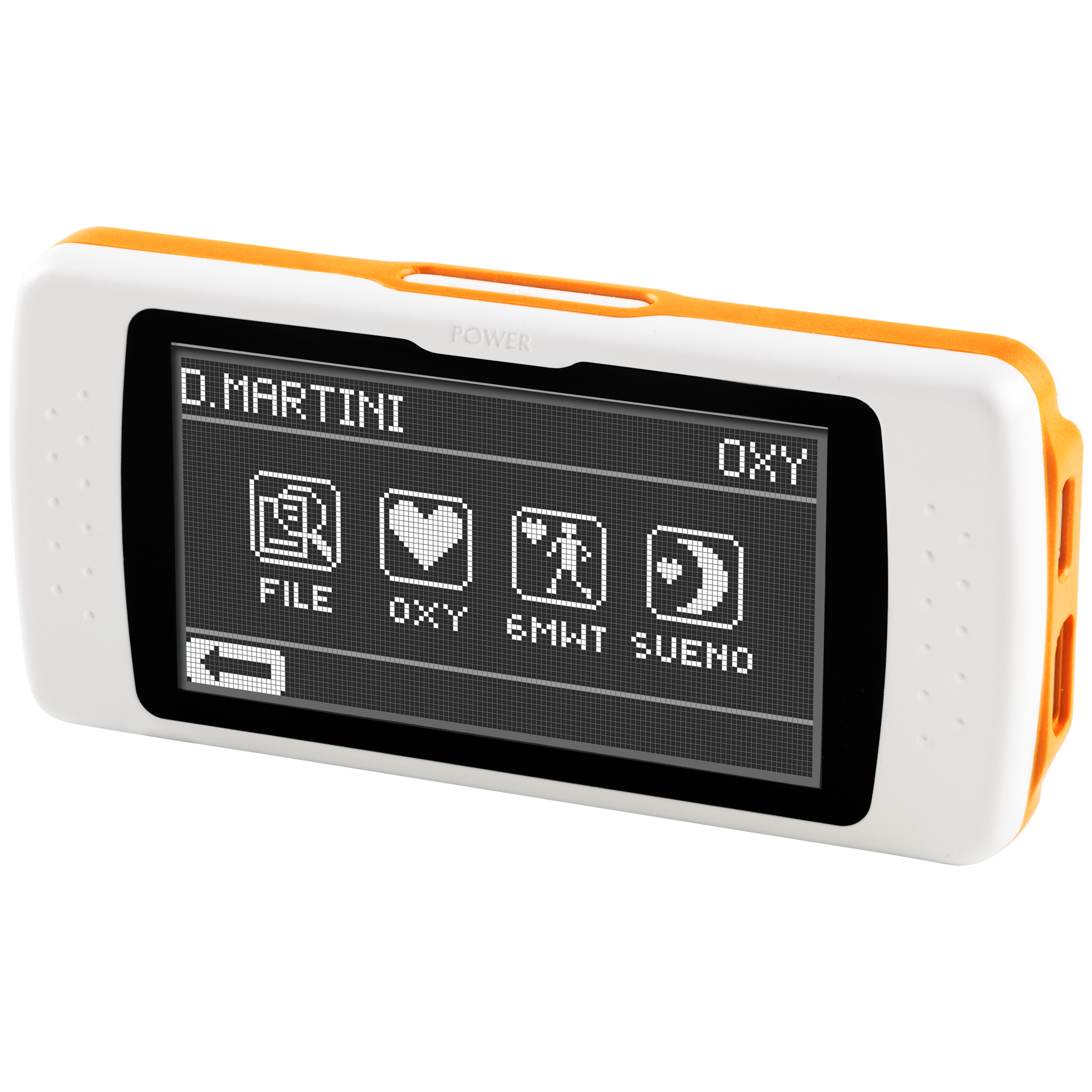

MIR Spirodoc Bluetooth Pulse Oximeter

---

SKU: MR-910606

Price:

Description

Specification

Spirometer technical specifications:

Flow sensor: bi-directional digital turbine
Flow range ±16L/s
Volume accuracy: ±3% o 50mL, whichever is greater
Flow accuracy: ±5% o 200mL/s, whichever is greater
Dynamic resistance at 12L/s: <0.5cmH2O/L/s
Temperature sensor: semiconductor (0-45°C)

Spirometer measured parameters:

FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25%-75%, FET, Estimated Lung Age, Extr. Vol., FIVC, FIV1, FIV1/FIVC%, PIF, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/t-tot, VT/ti, MVV measured, MVV calculated

Central unit technical specifications:

Display: LCD Backlit Touch screen Display
Resolution: 128x64 pixels
Power supply: Lithium ion 3.7V, 1100mA rechargeable battery
Data transmission: USB 2.0 On-The-Go and Bluetooth® 2.1
Accelerometer: Triaxial ± 2g, 400Hz sampling
Dimensions and weight: central unit 101x48x16mm, 99g
removable turbine head: 46x47x24mm, 17g
Battery charger (optional): 100VAC - 240VAC, 50Hz-60Hz
output 5VDC, 500mA, micro USB type B

Pulse-oximeter technical specifications

SpO2 range: 0-99%
SpO2 accuracy: ±2% (70-99% SpO2)
Heart rate range: 30-254BPM
Heart rate accuracy: ±2BPM or 2%, whichever is greater

Pulse-oximeter measured parameters (standard)

SpO2 [Baseline, Min, Max, Mean], Pulse rate [Baseline, Min, Max, Mean], T90% [SpO2<90%], T89% [SpO2<89%], T88% [SpO2<88%], T5% [ΔSpO2>5%], ΔIndex [12s], SpO2 Events, Pulse rate events [Bradycardia, Tachycardia], Step counter, Movement [VMU], Recording time, Analysis time

Sleep analysis (specific parameters)

Body position, SpO2 Events, Desaturation index (ODI), Desaturation [Mean Value, Mean duration, Longest duration, Nadir Peak], ΔSpO2 [Min Drop, Max Drop], Total Pulse Variations, Pulse Rate Index, NOD89% [SpO2<89%; >5min], NOD4% [SpO2 Basale-4%; >5min], NOD90% [SpO2<90%; Nadir<86%; >5min]

6MWT (6 Minute Walk Test specific parameters)

O2-Gap, Estimated distance, Distance walked, Predicted distance [Min, Standard], TΔ2% [SpO2≥2%], TΔ4% [ΔSpO2≥4%], Time [Rest, Walking, Recovery], Desaturation Area/Distance Optional data entry: Borg Dyspnea [Baseline, End, Change], Borg Fatigue [Baseline, End, Change], Arterial blood pressure [Systolic, Diastolic], Oxygen administered
