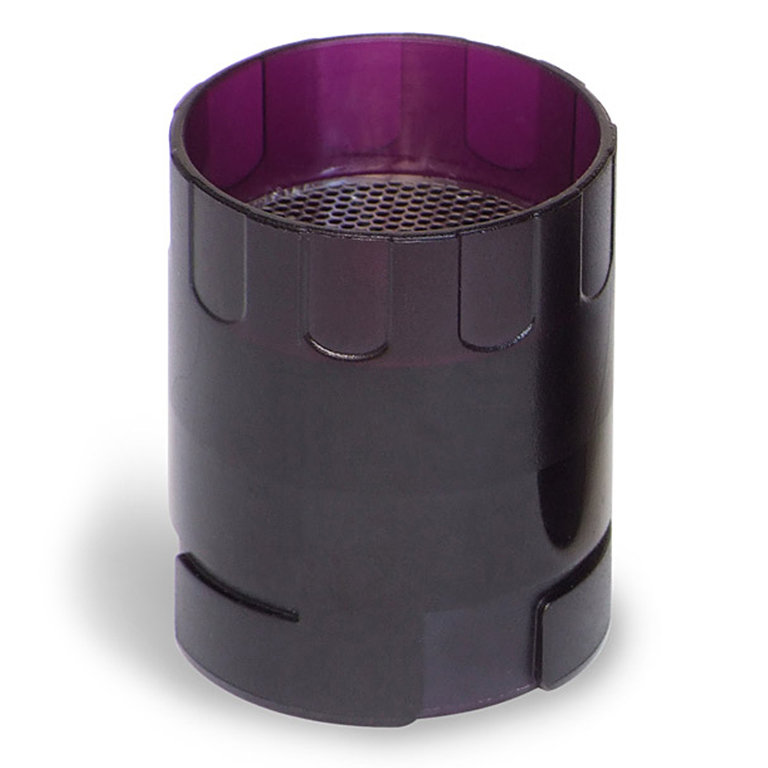

MIR Spirobank II Smart Spirometer-Reusable Turbine x1 Was: £1,858.80 Special Offer:
£1,738.80 £1,449.00 The Spirobank II® Smart is a handheld, portable diagnostic spirometer that offers the flexibility to be used in several ways to conduct basic and advanced spirometry. Optional pulse oximetry available.
It can be operated as a “stand-alone” or wirelessly connect to an iPad using the iSpirometry® app for testing that measures using only the basic set of spirometric parameters. The iSpirometry® app is powerful, yet simple to use and allows full control of the spirometer with real-time testing. It features an “incentivator” which is helpful to improve patient compliance during a Spirometry test. Results can also be shared electronically.
For more advanced spirometry with a wider range of spirometric parameters available, the Spirobank II Smart can connect directly to a PC via USB using the free MIR WinspiroPRO® PC Software. This also allows for real-time spirometry testing, and downloading of test results stored on the device for further analysis. It is capable of storing up to 10,000 test results on its internal memory.

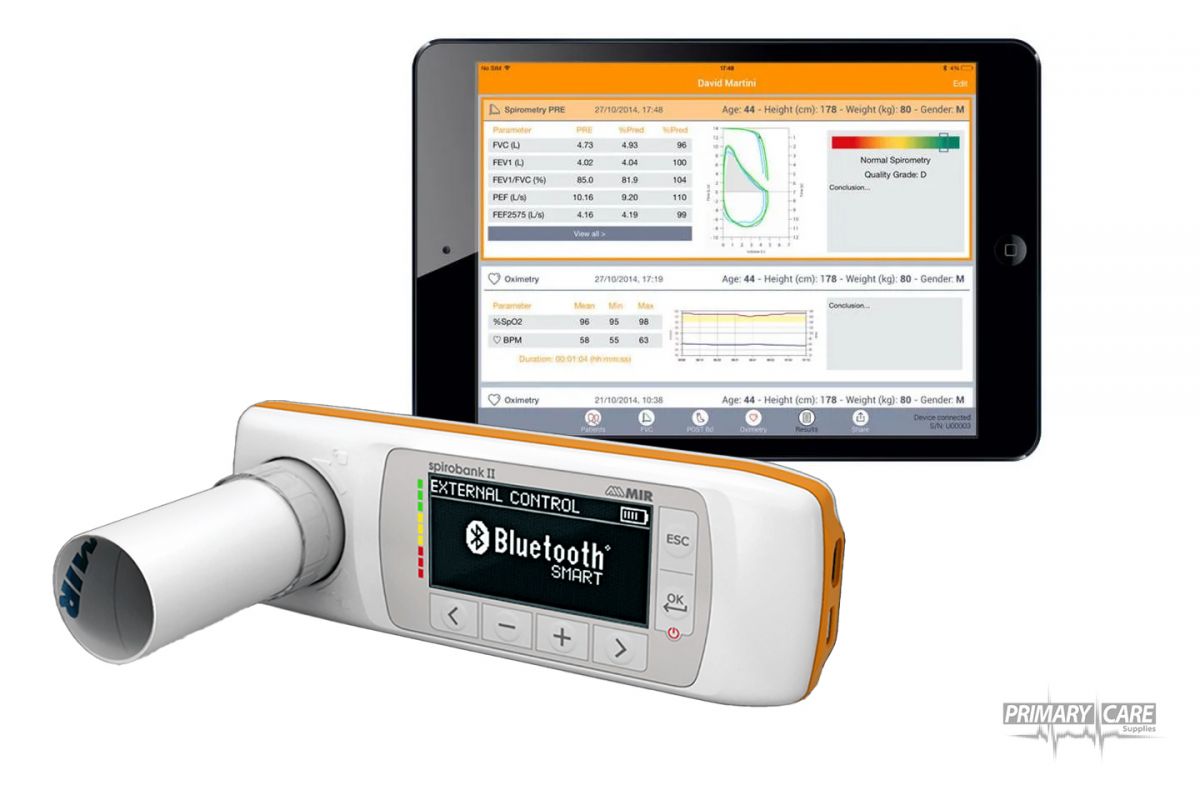

iPad enabled handheld spirometer
Connects to the iPad using the iSpirometry® app allowing full control of the spirometer with real-time testing
Patented “incentivator” system
Improve patient compliance during a Spirometry test using the iSpirometry® app.
Conduct basic or advanced testing
For basic testing, use it as a “stand-alone” or via the iPad. Conduct advanced spirometry testing using WinspiroPRO® PC software.
This is usually a stock item - Please allow 1 to 3 working days delivery
In most cases, items in stock that are ordered before 12 noon are delivered on a next working day service.
If you need this item urgently please use the live chat or call us to enquire about our premium rate delivery service including same-day, timed and weekend deliveries. For more information about delivery, please visit our delivery information page here
Brand - MIR
Detailed Technical Information - Spirometer
High resolution backlight display, with real time curve and test results
Long lasting Lithium ION battery, rechargeable via USB
Internal Storage up to 10.000 Spirometry tests or 300 hrs Oximetry
Dimensions: 6 x 2 x 1"; (160x55x25 mm)
Measured Parameters
Spirometry FVC, FEV1, FEV1/FVC%, DTPEF, FEV 0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/FVC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85%, FET, Vext, ELA, EVOL, FIVC, FIV1, PIF, FIV1/FIVC%, FIF25, FIF50, FIF75, R50, PIF, IRV, VC, IVC, IC, ERV, FEV1/VC%, TV, VE, RR, tI, tE, tI/t-tot, TV/tI, MVVOximetry (Optional): SpO2% (min, max, average), BPM (min, max, average), Test duration, % Bradycardia Duration (<40 BPM), % Tachycardia Duration (>120 BPM), % of Time with SpO2 ≤ 90% (T90%, T89%)
Measured Parameters when conected to MIR Spiro App
Spirometry VC, FVC, PRE/POST, FEV1, FEV1%, PEF, FEF25–75, FET, Lung Age, IVCOximetry (Optional): %SpO2 [Baseline, Min, Max, Mean], Pulse Rate [Baseline, Min, Max, Mean] Events
Predicted sets in stand-alone mode (Adults/Children)
ERS/Knudson; Knudson/Knudson; USA/Knudson; ERS/Zapletal; MC-Barcelona/Zapletal; Pereira/Pereira; JSR/Knudson
Predicted sets in PC-mode (Adults/Children)
GLI multi-ethnic; Nhanes III; ATS/ERS: Knudson; ERS (ECCS) / Knudson; Crapo & Bass / Knudson; ERS (ECCS) / Zapletal; Barcellona / Zapletal; Pneumobill / Knudson; Forche 2001 / Knudson; Hedenström / Solymar; Hong Kong Thoracic Society; Pereira 2008-2012; Japan Respiratoty Society; CECA 1971; South Korean; Chile 2014; Thailand; Perez-Padilla
Predicted sets in App-mode (Adults/Children)
PC and Tablet Connection features
Connect to your PC via USB (no Bluetooth)
Connect to your Tablet via Bluetooth Smart BLE 4.0
ATS/ERS 2019 Compliance
