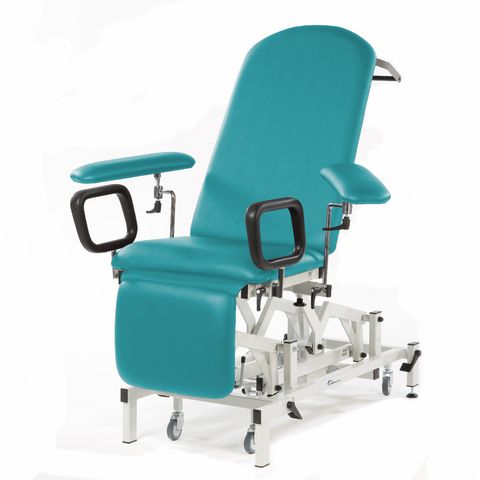

A specialist couch designed to provide a comfortable and easy to mount seat position for blood sampling procedures. All models are fitted with a pair of multi-adjustable arm rests and side support loops.

• Safe working load and lifting capacity of 240Kg
• Electric adjustable angle backrest from horizontal to +80˚
• Electric adjustable height from 52cm to 106cm
• Patient hand-grip supports to aid mount/dismount from the couch as well as providing patient security
• Fully adjustable phlebotomy arms for use on either side of couch
• Fitted with paper roll holder
• Compact frame design with retractable wheel system
• Adjustable foot for stability
• Purpose made precision bearings on all pivot points
• Anti-bacterial powder coated frame
• Inclined seat section for patient security
• Clearance beneath frame for mobile hoist
• Hand switch fitted as standard
• Standard width 65cm upholstery

Upholstery

A really hard wearing ‘leather look’ vinyl that will retain its performance for many years if cleaned and treated in the right manner. This fabric is fire retardant to crib 5, anti-bacterial and waterproof. Abrasion resistance to 100,000 cycles.

Available in 16 colours:

• White
• Light Grey
• Dark Grey
• Black
• Pepper
• Sky Blue
• Canard
• Dark Blue
• Olive
• Lotus Green
• Cream
• Brown
• Poterie
• Red
• Burgundy

Warranty

This couch has a lifetime frame warranty, 2 years on electric and hydraulic actuation, 2 years on gas struts and 12 months on all other components. (Further warranty details are available on request)

Good to know...

Mechanical Safety & Load Testing

All SEERS Medical products have been tested to the applicable clauses within IEC 60601-2-38 for mechanical safety and load test. Our couches have been thoroughly tested with a two and a half times safe working load (in excess of 600kgs) loaded evenly, for in excess of one hour, to prove load support capability without failure. All products are tested in accordance to IEC 60601-2-38 Clause 28.4 Not only do our products have high safe working loads (typically 240Kg), but our products also lift the rated safe working load from the minimum height to the maximum height smoothly.

Electrical Safety

All SEERS Medical products comply to IEC 60601-1 Safety for Medical Electrical Equipment as well as meeting the requirements of EMC to the standards of EN 60601-1-2:2000 - Directive 2007/47/EC. In addition, the actuation and control systems used on our products are marked with the UL mark, demonstrating compliance to UL60601-1 and CAN/CSA-C22.2No. 601.1-M90, meeting the requirements for USA and Canada. The actuation control system is also marked with approval to C-ETL-US No. 3154358.

CE Marking & Quality System

SEERS Medical operates a Quality Management System in accordance with ISO 9001:2008. SEERS products comply with the Essential Requirements in Annex I of EC Directive 93/42/EC, with all relevant design, production records, risk assessments, product testing and labelling information recorded in the documentation file labelled the “Technical File”. All products carry a unique serial number for traceability of build date, model number and associated build records.
