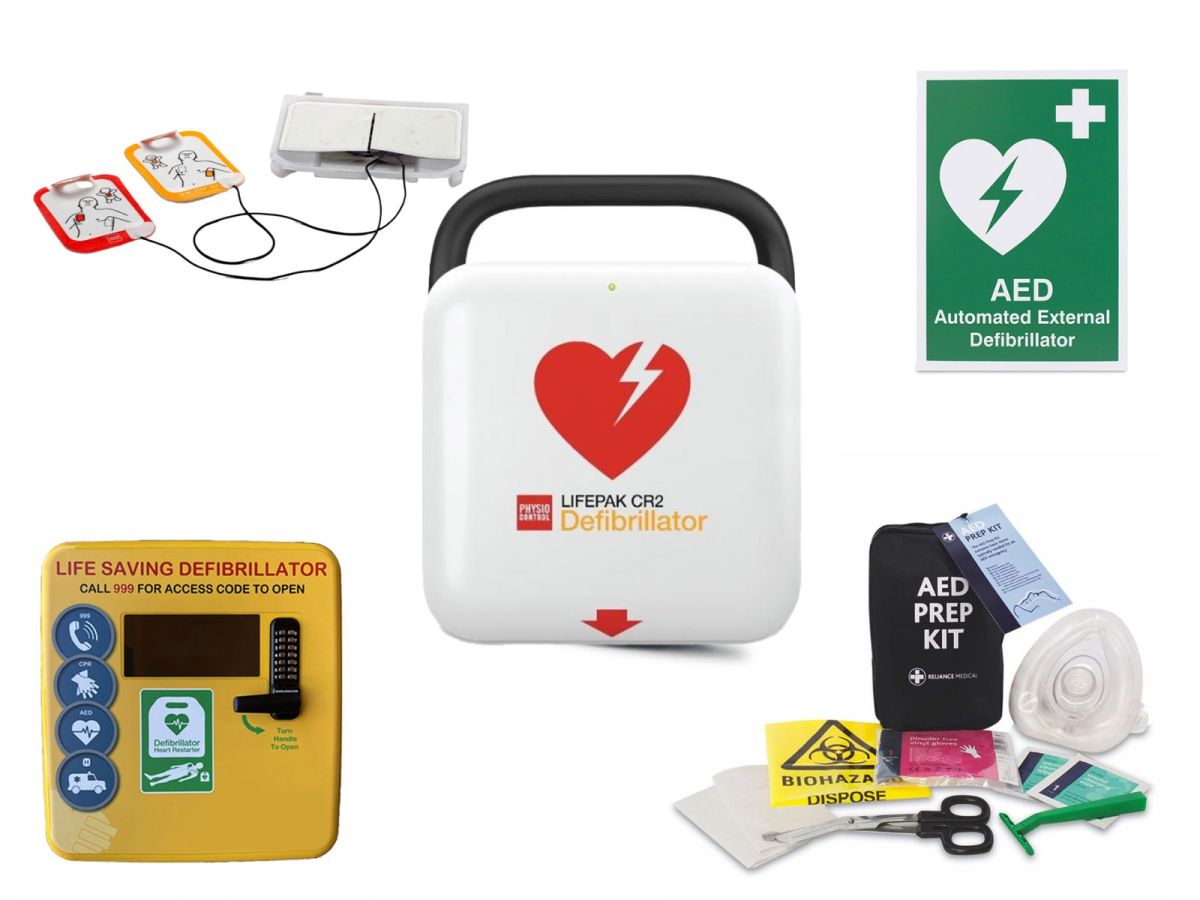

LifePak CR2 Semi-Automatic Defibrillator with Wifi Outdoor Package

---

SKU: SJA-H37002-P2

Price:

Description

Specification

Defibrillator

Waveform: Biphasic Truncated Exponential with voltage and duration compensation for
patient impedance.

Patient impedance range: 10 – 300 ohms

Energy accuracy: 10% of the energy setting into 50 ohms 15% of the rated energy output into 25 – 175 ohms

Output energy sequence: Multiple levels, configurable from 150 joules to 360 joules.

Energy default: 200J, 300J, 360J (adult) 50J, 75J, 90J (pediatric)

Shock Advisory System™: An ECG analysis system that advises whether a shock is appropriate.

cprINSIGHT™ analysis technology: Enables the defibrillator to analyze the patient’s heart rhythm while CPR is being performed.

CPR coaching: Instructions for adult and pediatric CPR, including feedback when no
CPR is detected, rate and depth guidance, a metronome and instructions on hand
placement.

Time to shock at 360J after CPR (with cprINSIGHT enabled):

- Semi-automatic: < 7 seconds
- Fully automatic: < 13 seconds

Charge time: 0 seconds for first 150J or 200J shock (as device is pre-charged). With
cprINSIGHT enabled, subsequent shocks will be charged during CPR and ready to shock at the end of the CPR period.

Controls

Lid release/ON-OFF: Controls device power.

Shock button, semi-automatic: Delivers energy when button pressed by the user.

Shock button, fully automatic: Flashes prior to delivering shock without requiring
user intervention.

Child Mode button: Allows operator to switch to Child Mode for reduced energy and
CPR guidance appropriate for children.

Language button: Optional feature allows operator to switch between the primary and
secondary languages for an optional multilanguage configuration.

Electrical protection: Input protected against high voltage defibrillator pulses per IEC 60601-1/EN 60601-1.

Safety classification: Internally powered equipment. IEC 60601-1/EN 60601-1.

User interface

User interface: The user interface includes voice prompts and audible tones.

ClearVoice™ technology: Detects background noise and adjusts audio and voice prompts to ensure they can be heard clearly in noisy environments.

Device status indicators: Visual and audible indicators indicating system readiness (device, pads and battery).

Environmental

Note: All performance specifications defined assume the unit has been stored (two hours
minimum) at operating temperature prior to operation.

Operating temperature: +32° to +122°F (0° to +50°C).

Storage temperature: -22° to +140°F (-30° to +60°C) with battery and electrodes, maximum exposure time limited to one week.

Long term storage: Always store the defibrillator within the recommended temperature range of 59° to 95°F (15° to 35°C).

Altitude: -1,253 to 15,000 ft (-382 to 4,572 m).

Relative humidity: 5 to 95% (non-condensing).

Dust and water resistance: IEC 60529/ EN 60529 IP55 with electrodes connected
and battery installed.

Shock: IEC 60068-2-27, (40g, 11 ms pulse, ½ sine each axis).

Vibration: MIL-STD-810G, method 514.6, helicopter – category 14 and ground vehicle –
category 20.

Physical characteristics

With handle, including electrodes and battery:

- Height: 3.8 in (9.7 cm)
- Width: 8.9 in (22.6 cm)
- Depth: 10.8 in (27.4 cm)
- Weight: 4.5 lb (2.0 kg)

Accessories

Primary battery:

- Type: Lithium manganese dioxide (Li/MnO2), 12.0V, 4.7 amp-hours.

- Capacity (at 20°C): Will provide 166 200 joule shocks (with one minute of CPR between shocks) or 103 360 joules shocks (with one minute of CPR between shocks) or 800 minutes of operating time.

- Standby life (assuming daily tests only): A new battery provides device power for 4 years if installed in device that is not used.

- Replace battery indication: At least 6 shocks and 30 minutes of operating time remain when first indicated.

- Weight: 0.7 lb (0.3 kg)

Electrode pads:

- Pads: Can be used on both adult and pediatric patients.
- Pads packaging: User intuitive, rapid access electrodes.
- Pads replacement: Replace every 4 years or after each patient use.

Data storage

Memory type: Internal digital memory (flash RAM).

ECG storage: Minimum 60 minutes of ECG stored for two patient episodes.

Communications

Communications: USB, Wireless 802.11 b/g/n data transfer to LIFELINKcentral™ AED program manager or LIFENET® System.
