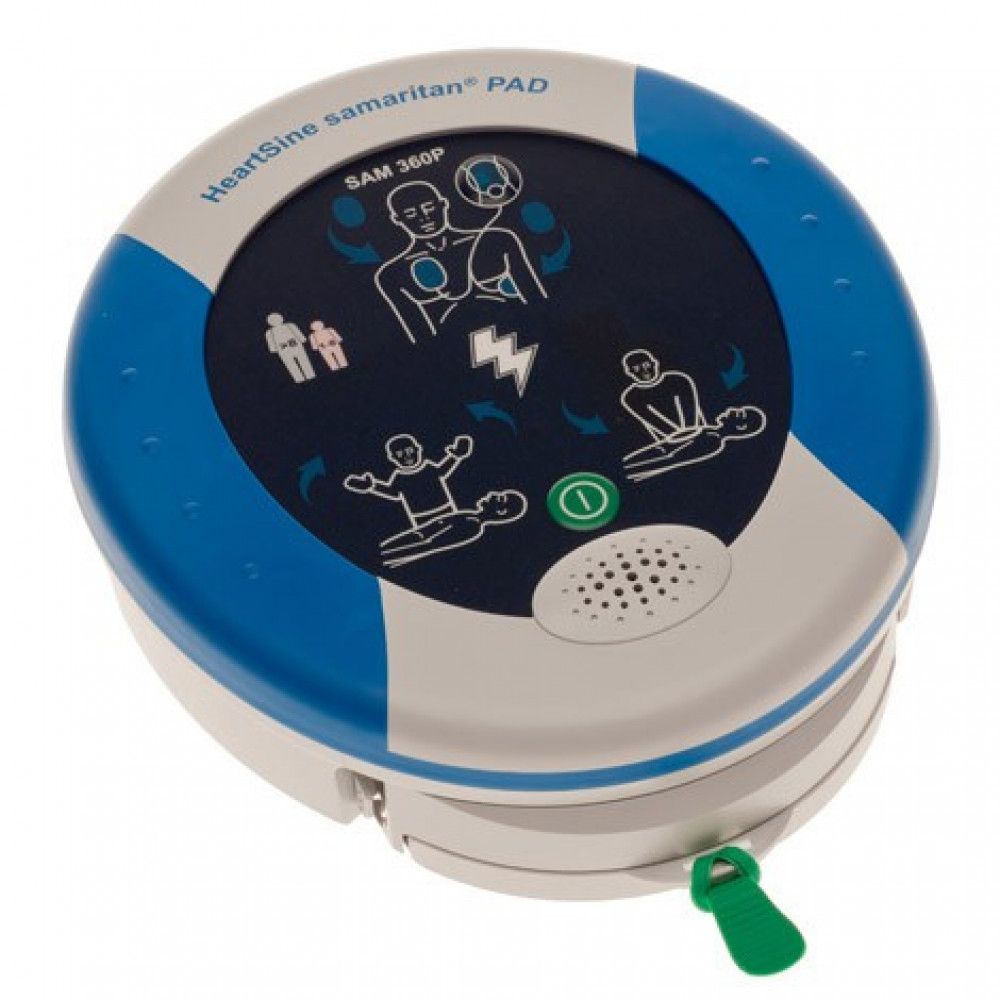

Heartsine Samaritan 360P Fully Automatic Defibrillator

---

SKU: SJA-H10029

Price:

Description

Specification

Defibrillator

Waveform: Self-Compensating Output Pulse Envelope (SCOPE) optimised biphasic escalating waveform compensates energy, slope and duration for patient impedance

Patient analysis system Method: Evaluates patient’s ECG, electrode contact integrity and patient impedance to determine if defibrillation is required Sensitivity/Specificity: Meets IEC/EN 60601-2-4 Impedance range: 20-230 ohms

Energy selection

Pad-Pak: Shock 1: 150 J Shock 2: 150 J Shock 3: 200 J

Pediatric-Pak: Shock 1: 50 J Shock 2: 50 J Shock 3: 50 J

Charge time (typical): 150J in < 8 seconds 200J in < 12 seconds



Environmental

Operating/Standby temperature: 0o C to 50o C (32o F to 122o F)

Transport temperature: 0°C to 50°C (32°F to 122°F)

NOTE: It is recommended that the device should be placed in an ambient temperature of between 0°C to 50°C (32°F to 122°F) for at least 24 hours upon first receipt.

Relative humidity: 5% to 95% non-condensing

Water resistance: IEC 60529/ EN60529 IPX6 with electrodes connected and battery installed

Dust resistance: IEC 60529/ EN60529 IP5X with electrodes connected and battery installed

Enclosure: IEC/EN 60529 IP56

Altitude: -381 to 4 575 metres (-1,250 to 15,000 feet)

Shock: MIL STD 810F Method 516.5, Procedure 1 (40 G’s)

Vibration: MIL STD 810F Method 514.5, Procedure 1

Category 4 Truck Transportation – US Highways

Category 7 Aircraft – Jet 737 & General Aviation

Atmospheric pressure: 572 hPa to 1060hPa (429 mmHg to 795 mmHg) EMC: IEC/EN 60601-1-2

Radiated emissions: IEC/EN 55011

Electrostatic discharge: IEC/EN 61000-4-2 (8 kV)

RF immunity: IEC/EN 61000-4-3 80MHz-2.5 GHz, (10 V/m)

Magnetic field immunity: IEC/EN 61000-4-8 (3 A/m)

Aircraft: RTCA/DO-160G, Section 21 (Category M)

RTCA/DO-227 (ETSO-C142a)

Falling height: 1 metre (3.3 feet)



Physical characteristics

With Pad-Pak inserted: Size: 20 cm x 18.4 cm x 4.8 cm (8.0 in x 7.25 in x 1.9 in)

Weight: 1.1 kg (2.4 lb)



Accessories

Pad-Pak Electrode and Battery Cartridge

Shelf life/Standby life: See the expiration date on the Pad-Pak/Pediatric-Pak (4 years from manufacture date)

Weight: 0.2 kg (0.44 lb) Size: 10 cm x 13.3 cm x 2.4 cm (3.93 in x 5.24 in x 0.94 in)

Battery type: Disposable single-use combined battery and defibrillation electrode cartridge (lithium manganese dioxide (LiMnO2 ) 18V)

Battery capacity (new): > 60 shocks at 200J or 6 hours of battery use

Electrodes: Disposable defibrillation pads are supplied as standard with each device

Electrode placement: Anterior - lateral (Adult) Anterior - posterior or Anterior - lateral (Pediatric) Electrode active area: 100 cm2 (15 in2 )

Electrode cable length: 1 metre (3.3 feet)

Aircraft safety test (TSO/ETSO-certified Pad-Pak): RTCA/DO-227 (ETSO-C142a)



Data storage

Memory type: Internal memory

Memory storage: 90 minutes of ECG (full disclosure) and event/incident recording

Review: Custom USB data cable (optional) directly connected to PC with Saver EVO Windows-based data review software

Materials used Defibrillator housing: ABS, Santoprene Electrodes: Hydrogel, Silver, Aluminium and Polyester

Warranty AED: 8-year limited warranty
