Roche SARS-CoV-2 Rapid Antigen Test

Accurate and reliable rapid testing for COVID-19 with results in under 30 minutes.



SARS-CoV-2 Rapid Antigen Test

An aid in identifying individuals infected by SARS-CoV-215

The SARS-CoV-2 Rapid Antigen Test is a reliable, rapid chromatopgraphic immunoassay for the qualitative detection of specific antigens of SARS-CoV-2 present in the human nasopharynx.

This test is an aid in detecting antigen from the SARS-CoV-2 virus in individuals suspected of COVID-19.

SARS-CoV-2: An overview of virus structure, transmission and detection

Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2) is an enveloped, single-stranded RNA virus of the family Coronaviridae. Coronaviruses share structural similarities and are composed of 16 nonstructural proteins and 4 structural proteins: spike (S), envelope (E), membrane (M), and nucleocapsid (N). Coronaviruses cause diseases with symptoms ranging from those of a mild common cold to more severe ones such as Coronavirus Disease 2019 (COVID-19) caused by SARS-CoV-2 1,2.

SARS-CoV-2 is transmitted from person-to-person primarily via respiratory droplets, while indirect transmission through contaminated surfaces is also possible3-6. The virus accesses host cells via the angiotensin-converting enzyme 2 (ACE2) receptor, which is most abundant in the lungs7,8.

The incubation period for COVID-19 ranges from 2 – 14 days following exposure, with most cases showing symptoms approximately 4 – 5 days after exposure3,9,10. The spectrum of symptomatic infection ranges from mild (fever, cough, fatigue, loss of smell and taste, shortness of breath) to critical11,12. While most symptomatic cases are not severe, severe illness occurs predominantly in adults with advanced age or underlying medical comorbidities and requires intensive care. Acute respiratory distress syndrome (ARDS) is a major complication in patients with severe disease. Critical cases are characterised by e.g., respiratory failure, shock and/or multiple organ dysfunction, or failure11,13,14.

Definite COVID-19 diagnosis entails direct detection of SARS-CoV-2 RNA by nucleic acid amplification technology (NAAT)21-23. Serological assays, which detect antibodies against SARS-CoV-2, can contribute to identify individuals, which were previously infected by the virus, and to assess the extent of exposure of a population. They might thereby help to decide on application, enforcement or relaxation of containment measures24.

Upon infection with SARS-CoV-2, the host mounts an immune response against the virus, including production of specific antibodies against viral antigens. Both IgM and IgG have been detected as early as day 5 after symptom onset25,26. Median seroconversion has been observed at day 10 – 13 for IgM and day 12 – 14 for IgG27-29, while maximum levels have been reported at week 2 – 3 for IgM, week 3 – 6 for IgG and week 2 for total antibody25-31. Whereas IgM seems to vanish around week 6 – 732,33, high IgG seropositivity is seen at that time25,32,33. While IgM is typically the major antibody class secreted to blood in the early stages of a primary antibody response, levels and chronological order of IgM and IgG antibody appearance seem to be highly variable for SARS-CoV-2. Anti-SARS-CoV-2 IgM and IgG often appear simultaneously, and some cases have been reported where IgG appears before IgM, limiting its diagnostic utility26,27,29,34,35.

After infection or vaccination, the binding strength of antibodies to antigens increases over time – a process called affinity maturation36. High-affinity antibodies can elicit neutralization by recognizing and binding specific viral epitopes37,38. In SARS-CoV-2 infection, antibodies targeting both the spike and nucleocapsid proteins, which correlate with a strong neutralizing response, are formed as early as day 9 onwards, suggesting seroconversion may lead to protection for at least a limited time34,39-42.

Nucleocapsid protein (N)
Envelope protein (E)
Spike protein (S)
Membrane glycoprotein (M)
RNA

Testing ready to go when you need to know

The reliable SARS-CoV-2 Rapid Antigen Test provides fast answers wherever you need them. It’s time to expand testing- because patients and their communities need to know.

The benefit of having a
SARS-CoV-2 antigen test available

The SARS-CoV-2 Rapid Antigen Test is a reliable, rapid chromatopgraphic immunoassay for the qualitative detection of specific antigens of SARS-CoV-2 present in the human nasopharynx.

This test is an aid in detecting antigen from the SARS-CoV-2 virus in individuals suspected of COVID-19. This product is strictly intended for professional use in laboratory and Point of Care environment.

Features and benefits of the SARS-CoV-2 Rapid Antigen Test

Besides laboratory PCR testing, antigen assays can also be offered as rapid testing in near-patient settings. The SARS-CoV-2 Rapid Antigen Test is a rapid chromatographic immunoassay intended for the qualitative detection of specific antigens of SARS?CoV?2 present in the human nasopharynx. This test is intended to detect antigen from the SARS?CoV?2 virus in individuals suspected of COVID?19. This product is strictly intended for professional use in laboratory and Point of Care environments.  Similar to laboratory instruments, it detects a SARS-CoV-2 antigen, the nucleoprotein. It can therefore be used to assess whether a person is infected with SARS-CoV-2 by providing a qualitative result showing coloured bands indicating the presence of SARS-CoV-2 antigens.

The SARS-CoV-2 Rapid Antigen Test enables fast decision making e.g.  whether patients need to be put in quarantine, reducing the risk of further spreading. In addition to that it allows for screening of individuals after confirmed exposure to a SARS-CoV-2 infected person or individuals at risk of exposure such as healthcare workers.

The SARS-CoV-2 Rapid Antigen Test allows for decentralized testing at the point of care and helps to expand the range and quantity of direct virus testing into otherwise inaccessible locations. Rapid point of care testing can sometimes be the only viable option if lab testing is not sufficiently available. In addition to that, the SARS-CoV-2 Rapid Antigen Test is an instrument free test, allowing testing in rural/ low-infrastructure areas.

The benefits of the SARS-CoV-2 Rapid Antigen Test in short:

  • Getting a quick result within 15-30 minutes – no need for a follow-up appointment to discuss the result
  • Easy handling which does not require specific training
  • No instrument required
  • Allowing decentralized testing or access to testing in areas where laboratory testing is not available

Testing the quick and easy way

Testing process for the SARS-CoV-2 Rapid Antigen Test15

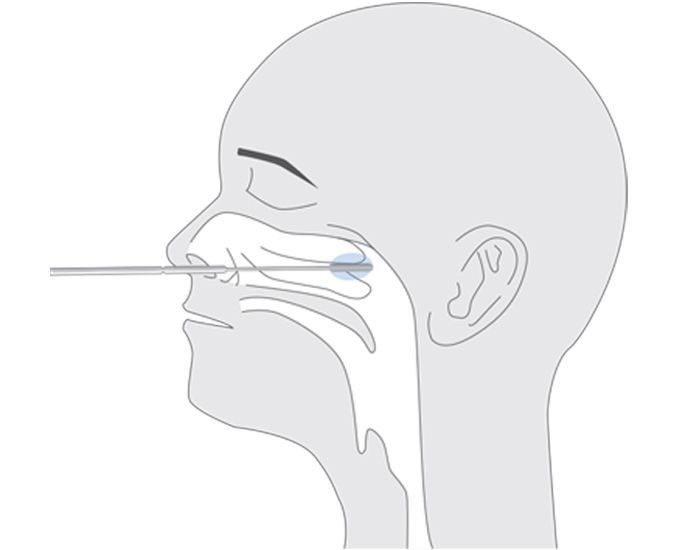

1. Collecting a sample (nasypharyngeal swab)

Insert a sterile swab into the patient's nostril, swab the surface of the posterior nasopharynx. Withdraw the swab from the nasal cavity.

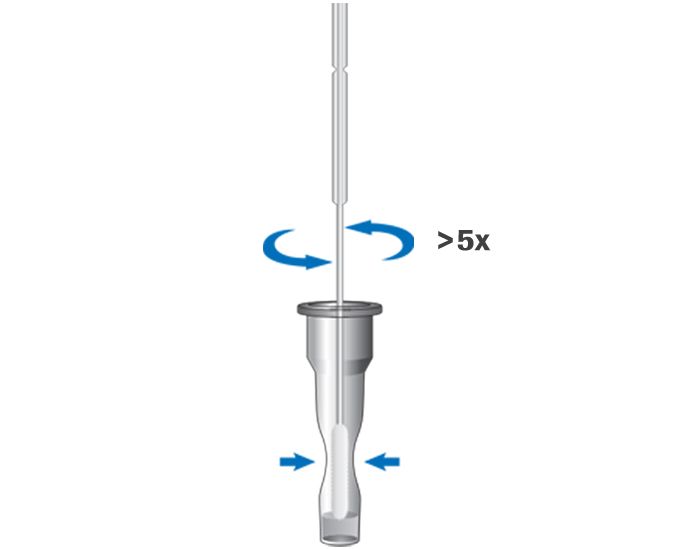

2a. Preparing a sample

Insert the swab into an extraction buffer tube. While squeezing the buffer tube, stir the swab more than 5 times.

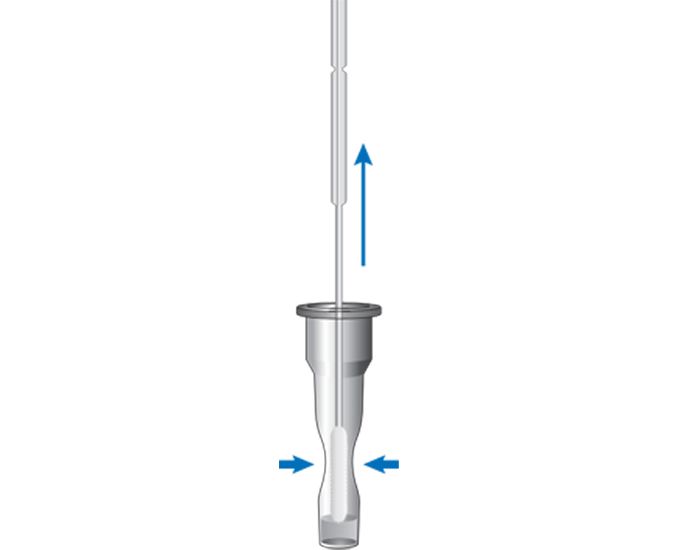

2b. Preparing a sample

Remove the swab while squeezing the sides of the tube to extract the liquid from the swab.

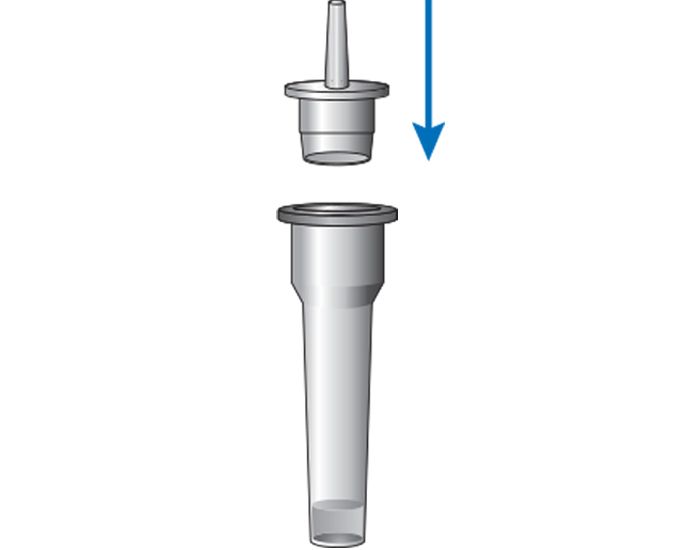

2c. Preparing a sample

Press the nozzle cap tightly onto the tube. Continue with 3a. Performing a test.

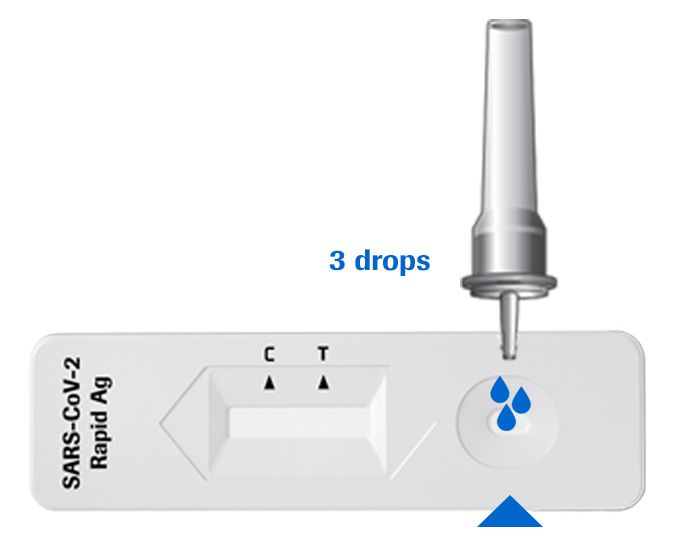

3a. Performing a test

Apply 3 drops of extracted sample to the specimen well of the test device.

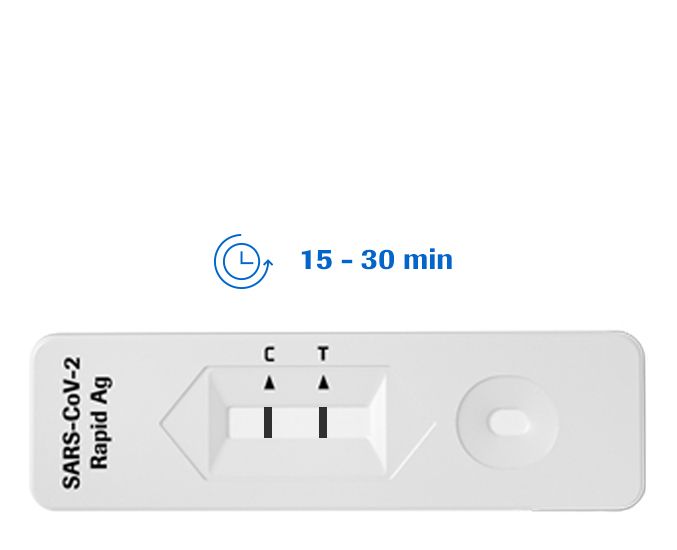

3b. Performing a test

Read the test result at 15 to 30 min. Warning: Risk of incorrect results. Do not read the test result after 30 min.

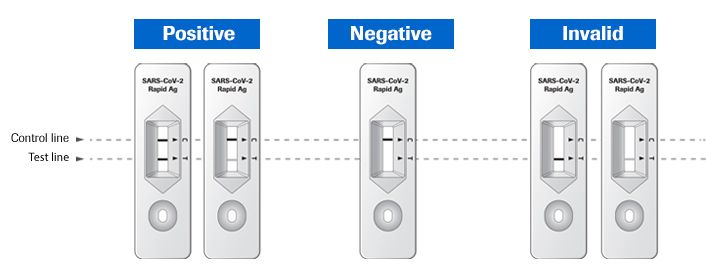

4. Interpreting results

A colored line appears in the top section of the result window to show that the test is working properly. This is the control line (C). Even if the control line is faint, the test should be considered to have been performed properly. If no control line is visible the test is invalid. In case of a positive result, a colored line appears in the lower section of the result window. This is the test line (T). Even if the test line is very faint or not uniform, the test result should be interpreted as a positive result.

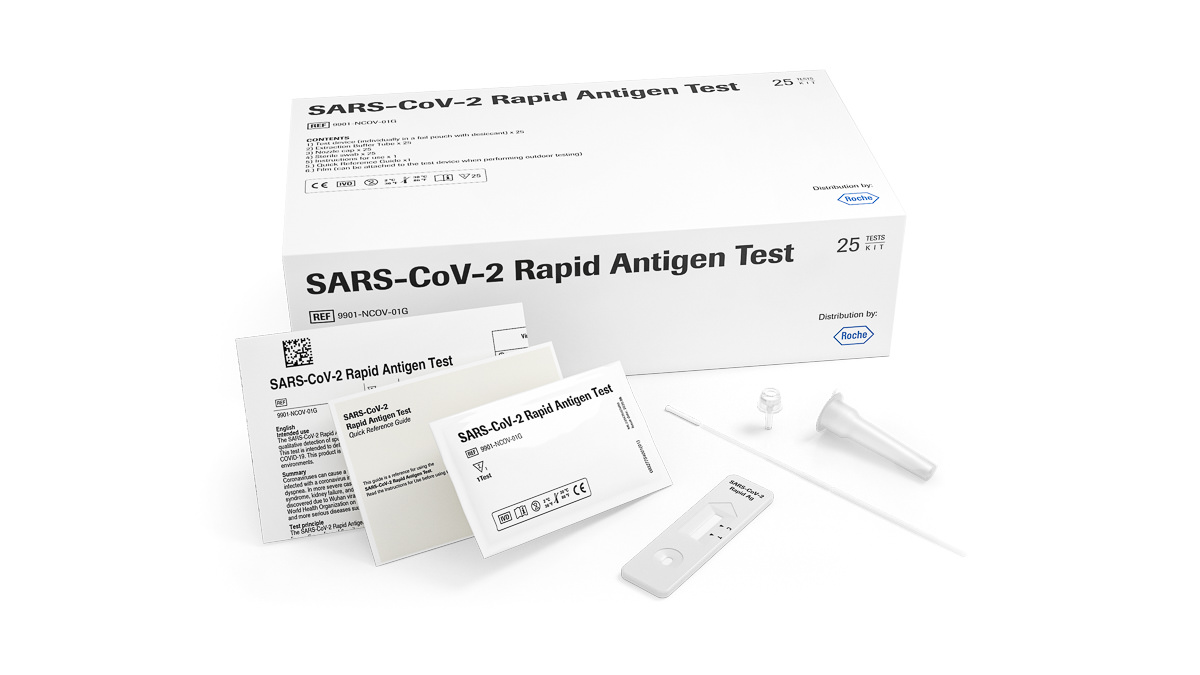

Test Kit Information

The kit is ready for use and contains all equipment needed to perform a test.

The following components are needed for a test and included in the kit:

  • Test device (individually in a foil pouch with desiccant)
  • Extraction buffer tube
  • Nozzle cap
  • Sterile swap
  • Film (can be attached to the test device when performing outdoor testing)
  • Instructions for use
  • Quick Reference Guide

ROC-09327592190

Do you have any questions? Call 0845 862 9500 today.

Resource Library

Testing process for the SARS-CoV-2 Rapid Antigen Test15

Content from Roche Diagnostics: https://diagnostics.roche.com/global/en/products/params/sars-cov-2-rapid-antigen-test.html

References

  1. Su S, Wong G, Shi W, et al.-Trends Microbiol. 2016;24(6):490–502.-2016-Elecsys Anti-SARS-CoV-2 -L (v1.0)
  2. Zhu, N., Zhang, D., Wang, W. et al.-N Engl J Med 382(8) 727-733-2020-Elecsys Anti-SARS-CoV-2 -Lit (v1.0)
  3. Chan, J.F., Yuan, S., Kok, K.H., To, K.K., Chu, H., Yang, J. et al.-Lancet. 395, 514–523.-2020- El (v1.0)
  4. U.S. CDC. https://www.cdc.gov/coronavirus/2019-ncov/prevent-getting-sick/how-covid-spreads.html. Published April 2, 2020. Accessed April 15, 2020.
  5. WHO. https://www.who.int/news-room/commentaries/detail/modes-of-transmission-of-virus-causing-covid-19-implications-for-ipc-precaution-recommendations. Published March 29, 2020. Accessed April 15, 2020.
  6. Kampf, G., Todt, D., Pfaender, S., Steinmann, E.-J Hosp Infect. 104(3), 246–251.-2020- Elecsys Ant (v1.0)
  7. Letko, M., Marzi, A., Munster, V. (2020).-Nat Microbiol. 1–8. doi:10.1038/s41564-020-0688-y.-2020- (v1.0)
  8. Hoffmann, M., Kleine-Weber, H., Schroeder, S. et al.-[published online ahead of print, 2020 Mar 4]. (v1.0)
  9. WHO. https://www.who.int/docs/default-source/coronaviruse/situation-reports/20200403- sitrep-74-covid-19-mp.pdf. Published April 3, 2020. Accessed April 15, 2020.
  10. Lauer SA et al.-Ann Intern Med 2020;172(9):577-82-The Incubation Period of COVID-19 (v1.0)
  11. Rothe, C et al-N Engl J Med 2020;382(10):970-971-2020-Lab Infectious Diseases Respiratory tract infec (v1.0)
  12. Kupferschmidt K-Science. https://www.sciencemag.org/news/2020/02/paper-non symptomatic-patienttrans (v1.0)
  13. Bai Y et al-JAMA 2020;323(14):1406-1407-2020-Lab Infectious Diseases Respiratory tract infections Co (v1.0)
  14. Mizumoto K et al-Euro Surveill 2020;25(10):2000180.-2020-Lab Infectious Diseases Respiratory tract i (v1.0)
  15. SARS-CoV-2 Rapid Antigen Test Package Insert 2020-09, V 1.0.
