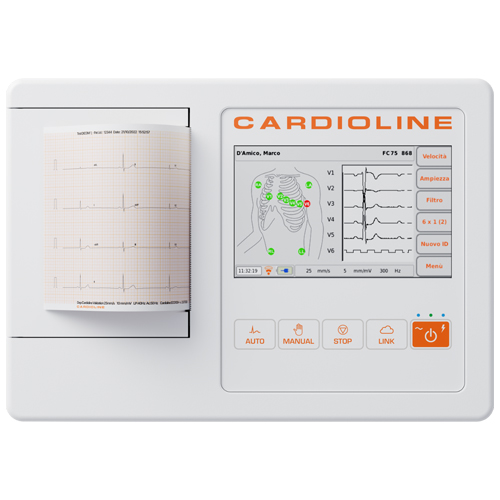

Cardioline 100L Interpretative ECG Machine
The ECG 100L has been designed for portability and ease of use, without compromising Cardioline’s recognised quality standards. Particular attention has been paid to device usability, using a high resolution 5-inch colour touch screen display, as well as dedicated keys for fast operation.
A smart user interface guides the user through the different steps necessary to acquire the ECG. Various on-screen messages visually inform the user of the ongoing operations and warn in case of errors for example in case of lead off.
The device is equipped with USB port to export the ECG stored in the device memory in a PDF format.The ECG100L is supplied with the 12-lead Glasgow resting ECG interpretation algorithm, with specific criteria by age, sex and race. The algorithm provides full ECG interpretation in short or extended form, including infant, pediatric and acute ST elevation myocardial infarction detection.
Features
• 12 lead, 3 Channel ECG machine with high quality University of Glasgow protocol interpretive programme with Arrhythmia detection
• On-screen preview of ECG - review recorded ECG prior to printing which saves paper
• Real time display of ECG
• Disconnected and inverted electrode indicator aids patient hookup
• Stores 50 ECGs in memory
• 5 inch TFT backlit colour LCD with resistive touch screen plus functional dedicated keys
• USB port connectivity
• Mains power supply or internal rechargeable battery
• PDF export of ECG for attachment to EMIS and SystmOne
• Weight 1.48Kg Dimensions 270x190x60 mm
• Paper roll type thermal 100mm x 20m
Supplied with
• ECG patient cable standard IEC, 10 leads, 4mm plugs
• Pack of 10 snap clips
• Disposable electrodes
Includes EasyApp Windows Software allowing the Cardioline 100L ECG to be connected directly to the computer to transfer ECG data. Creating a database and producing PDF of results.
Stock items are usually dispatched and delivered within 1 to 3 working days.
In most cases, items in stock that are ordered before 12 noon are delivered on a next working day service.
For accurate delivery information, please call 0845 862 9500 or press the live chat button to speak to one of our online sales team.
If you need this item urgently please contact us using the live chat or call us on 0845 862 9500 to enquire about our premium rate delivery service including same-day, timed and weekend deliveries.
For more information about delivery, please visit our delivery information page here
What are the key features of the Cardioline ECG100L?
The Cardioline ECG100S boasts a range of advanced features designed to enhance clinical efficiency and accuracy. With its compact design and high-resolution display, this device offers simultaneous 12-lead acquisition for comprehensive cardiac evaluations. It integrates seamlessly with dedicated ECG management systems, ensuring robust connectivity and data management capabilities. The ECG100L also includes the University of Glasgow protocol interpretive for precise analysis and interpretation of ECG data, supporting healthcare professionals in making informed clinical decisions.
How easy is it to use the Cardioline ECG100L?
Designed with usability in mind, the Cardioline ECG100L features an intuitive interface and straightforward controls, making it accessible for healthcare providers at all levels of expertise. Automated functions simplify the acquisition and measurement process, reducing the likelihood of user error and optimizing workflow efficiency. Customizable settings allow adaptation to specific clinical needs, further enhancing usability in diverse healthcare settings.
What support and services are available for the Cardioline ECG100L?
Cardioline provides robust support services to ensure the optimal performance and longevity of the ECG100L. Our comprehensive offerings include training resources to familiarize users with device operation and software functionalities. Technical assistance is readily accessible, supplemented by a responsive customer service team dedicated to addressing inquiries and facilitating timely maintenance or repairs. Additionally, the ECG100L is backed by a warranty to safeguard your investment, offering peace of mind and uninterrupted clinical operations.
Is the 100L ECG supplied with computer software?
Yes the ECG machine is supplied with windows software. ECG files can be stored on the device or exported, through USB connection or memory stick to a specific ECG Management application for PCs, “ECGEasyApp”, designed for easy but complete handling of patient ECGs.
ECGEasyApp is an application for managing, archiving and viewing exams, managing and archiving patient files, as well as reviewing ECG exams performed with Cardioline ECG devices, converting and printing to PDF.
It is an application for PC, ideal to manage exams recorded by Cardioline’s electrocardiographs.
ECGEasyApp can receive ECG exams, in SCP format, via USB or directly connecting the device to the PC with a USB cable, or inserting in the PC a USB key where the exams have been previously saved.
ECGEasyApp allows its users maximum flexibility to update their units’ configurations.
The system is compliant with current regulatory and privacy requirements.
