Handheld, portable breath CO monitoring tool designed for use with pregnant smokers. Large touchscreen display with PC connectivity.

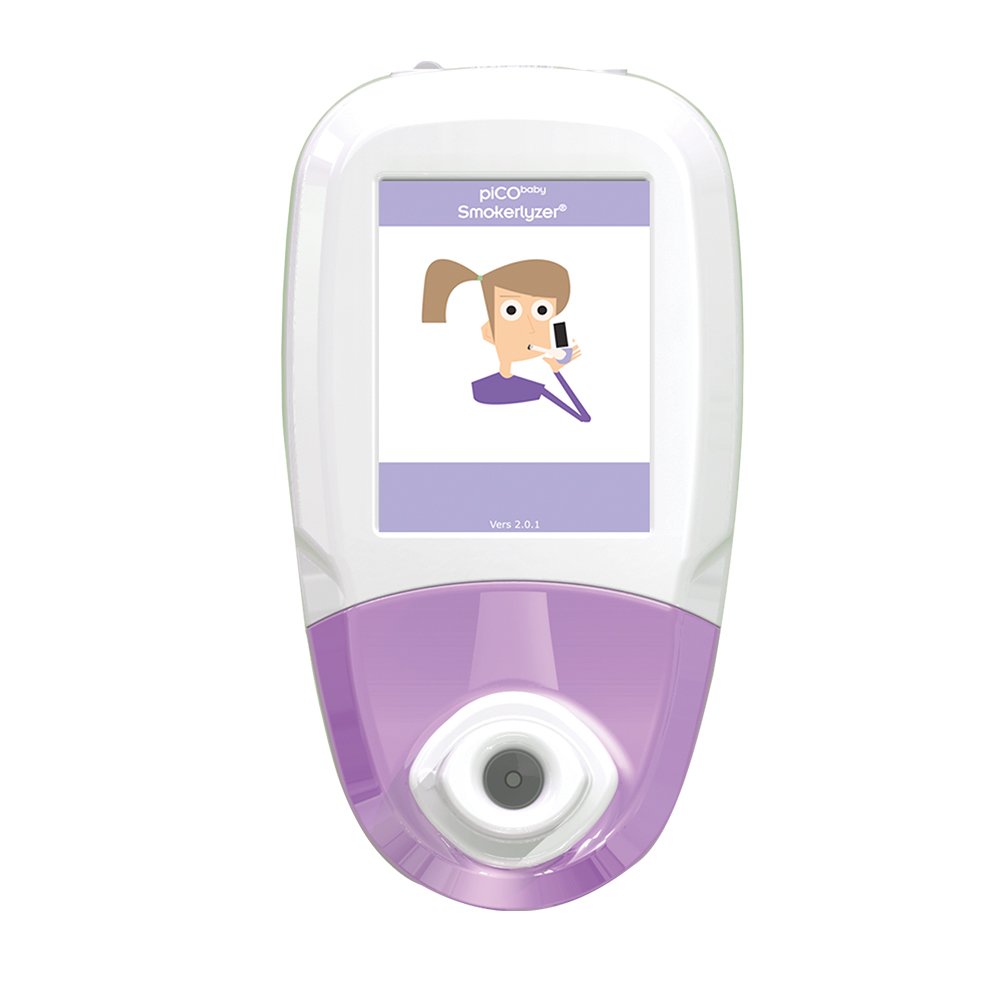

The piCObabyTM Smokerlyzer® is a breath carbon monoxide monitor, specifically designed for use with pregnant smokers. It is a valuable tool for pregnant smokers to visualise the effects that smoking is having on them and their child. Ideal for use in midwifery as well as for use with general smokers in smoking cessation programmes and research.

The device features a large touchscreen colour display with a simple user interface for complete ease of use. In just one touch of a button, a user can perform a test following the on-screen prompts for when to inhale, exhale and when to stop. The device measures carbon monoxide levels (ppm), carboxyhaemoglobin (%COHb) and foetal carboxyhaemoglobin (%FCOHb) in a breath sample. Results are displayed in seconds showing PPM, %COHb and %FCOHb values as well as the familiar green, amber and red traffic light system providing the user with a visual interpretation of results.

The piCObabyTM can also be connected to a PC via USB cable using the free COdata+ software. The software allows inputting of patient data, capture of readings whilst the device is connected to the PC, storing of results, interpretation and reporting. (USB cable not included).

Designed with infection control in mind, the plastic casing of the device is made using SteriTouch® technology, a material that eradicates 99.9% of harmful bacteria on contact. The device does not require calibrating and comes with a 5-year manufacturer’s warranty. Verification gas and kits are available to check the status of the monitor. The device uses a re-usable, multi-patient d-piece combined with Bedfont’s patent pending Steribreath® single-use mouthpieces. Steribreath® mouthpieces are available in boxes of 250 and are individually sealed for optimal infection control.

KEY FEATURES

• Designed for use with pregnant smokers
  Measures ppm, %COHb with automatic conversion to %FCOhb (foetal carboxyhaemoglobin)

• Touchscreen operation
  Clear colour graphics and easy to navigate interface for complete ease of use

• One touch testing
  Perform a test in seconds with easy to follow prompts on-screen

• Traffic light results indicator
  Visual way to easily interpret test results using the familiar green, red and amber traffic light system

• USB connectivity to PC using COdata+
  Using COdata+ software, capture and store readings for patients.

• Excellent infection control
  Built with SteriTouch®, bacteria is killed on contact minimising infection risk. SteriBreath mouthpieces come individually sealed.

• 5-Year warranty
  Manufacturer’s warranty for added peace of mind

Available on NHS Supply Chain FDE85007
